Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 15V
Minimum Breakdown Voltage 18V
Max Clamping Voltage 34V
Peak Pulse Current(Ippm) 12A (8/20μs)
Power Dissipation - Pd 400W
Applications General Purpose
Capacitance @ Frequency 105pF @ 1MHz
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 066618-ESDA18-1K
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ESDA18-1K CAD Model

Description

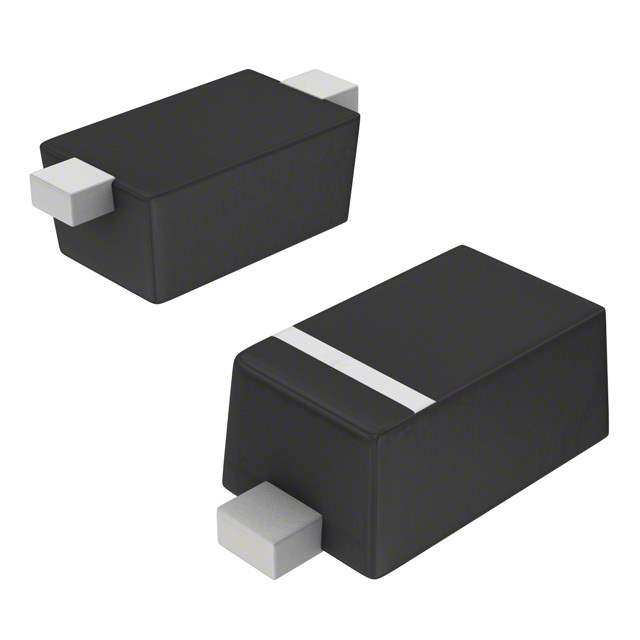

STMicroelectronics ESDA18-1K – Transil ESD Protection Device

The ESDA18-1K from STMicroelectronics is a state-of-the-art Transil diode designed to protect sensitive electronic circuits from Electrostatic Discharge (ESD) strikes. This unidirectional single-line TVS (Transient Voltage Suppressor) diode is a must-have for any application where ESD protection is critical. Its compact SOD-881 package makes it ideal for space-constrained applications, while its robustness ensures reliable defense against ESD without compromising the integrity of the protected signal.

Key Features

  • Stand-off Voltage: The ESDA18-1K is designed to tolerate a maximum stand-off voltage of 18 V, providing a suitable margin for a wide range of applications.
  • ESD Protection: It offers excellent ESD protection exceeding the IEC 61000-4-2 level 4 standard, withstanding ESD discharges up to 30 kV (air discharge) and 30 kV (contact discharge).
  • Low Clamping Voltage: The device features a low clamping voltage, ensuring that sensitive components are shielded from the transient overvoltages that can occur during an ESD event.
  • Low Leakage Current: It has an ultra-low leakage current, which is critical for maintaining the energy efficiency of the protected device.
  • Fast Response Time: With an exceptionally fast response time, the ESDA18-1K reacts almost instantaneously to transient voltage spikes, safeguarding the electronic components from damage.
  • High Reliability: Manufactured by STMicroelectronics, a leader in semiconductor solutions, the ESDA18-1K is a synonym for reliability and performance in ESD protection.

Applications

The ESDA18-1K is suitable for a wide array of applications where ESD sensitivity is a concern. Common use cases include:

  • Mobile Devices
  • Computers and Peripherals
  • Networking Equipment
  • Portable Electronics
  • Industrial Controls
  • Medical Equipment

In summary, the ESDA18-1K from STMicroelectronics is an essential component for designers looking to enhance the ESD immunity of their electronic systems. Its combination of a small form factor, high ESD protection level, and low parasitic effects makes it an excellent choice for safeguarding high-speed data lines and other sensitive circuits.
