Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer STMicroelectronics
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 13.2V (Max)
Voltage - Breakdown (Min) 13.6V
Voltage - Clamping (Max) @ Ipp 22.7V
Current - Peak Pulse (10/1000µs) 57A (8/20µs)
Power - Peak Pulse 1200W (1.2kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount

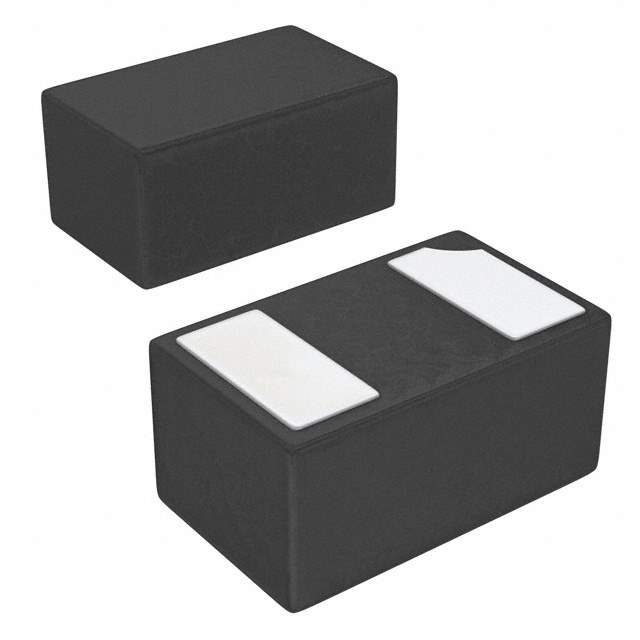

Case / Package 2-UDFN
Supplier Device Package 1610
Base Product Number ESDA15
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number -497-16911-1,-497-16911-2,497-16911-1,497-16911-2,-497-16911-6,497-16911-6,497-ESDA15P60-1U1MCT,497-16911-6-ND,497-ESDA15P60-1U1MDKR,497-16911-2-ND,497-ESDA15P60-1U1MTR,497-16911-1-ND
Standard Package 8,000
Win Source Part Number 1334870-ESDA15P60-1U1M
Ultra Librarian 3D Model Ultra Librarian ESDA15P60-1U1M CAD Model

Description

STMicroelectronics ESDA15P60-1U1M ESD Protection Device

The ESDA15P60-1U1M from STMicroelectronics is a robust ESD protection device designed to safeguard high-speed interfaces from electrostatic discharge damages. This device is part of ST's Transil series, which is specifically engineered to provide a high level of protection for sensitive electronic components against transient voltage spikes.

Featuring a unidirectional configuration, the ESDA15P60-1U1M is capable of withstanding ESD surges in accordance with the IEC 61000-4-2 standard, ensuring reliability and stability in a variety of applications. With its low clamping voltage and low capacitance, it is particularly well-suited for protecting high-speed data lines, including USB 2.0, HDMI, and Ethernet interfaces, without compromising signal integrity.

The compact SOD-128 package of the ESDA15P60-1U1M makes it an excellent choice for space-constrained applications, while also providing a low line capacitance of just 1.5 pF, which is essential for maintaining the fidelity of high-speed signals. Additionally, the device features a large bandwidth, which is critical for compatibility with fast data rates.

Key Features:

  • Transient protection for data lines as per IEC 61000-4-2 (ESD) at ±15 kV (air and contact discharge)
  • Unidirectional clamping action
  • Low clamping voltage
  • Low line capacitance of 1.5 pF, ideal for high-speed data lines
  • Peak pulse power dissipation of 600 W (8/20 µs waveform)
  • Compact SOD-128 package for space-saving applications

The ESDA15P60-1U1M is an excellent choice for designers looking to enhance the durability and longevity of their electronic products. By integrating this device into their designs, they can confidently protect their products against the common yet potentially devastating effects of ESD, ensuring that their devices continue to operate reliably under various conditions. Whether used in consumer electronics, telecommunications, or computing devices, the ESDA15P60-1U1M stands as a testament to STMicroelectronics' commitment to providing high-quality protection solutions.
