The ESDA13P70-1U1M is a cutting-edge ESD protection device from the renowned semiconductor manufacturer STMicroelectronics. This product is designed to safeguard high-speed interfaces against electrostatic discharge (ESD) threats, which are common in electronic equipment. The ESDA13P70-1U1M is part of STMicroelectronics' commitment to providing advanced circuit protection solutions for the latest electronic devices.

Key Features

• Transient protection: The ESDA13P70-1U1M offers robust protection against ESD, ensuring the safety of sensitive components by clamping high-voltage transients through a low-capacitance diode structure.
• Low capacitance: With an ultra-low capacitance design, this device is ideal for protecting high-speed data lines without compromising signal integrity.
• Single-line protection: This component is capable of protecting one data or power line, making it a versatile choice for various applications.

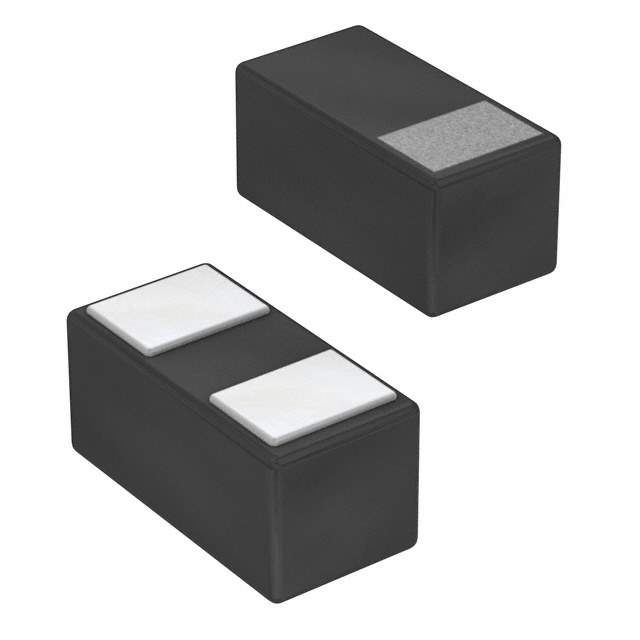

• Small package: The ESDA13P70-1U1M comes in a compact µQFN-1L package, which is perfect for space-constrained applications.
• High reliability: Manufactured by STMicroelectronics, a leader in the semiconductor industry, this product meets high standards of quality and performance.

Applications

The ESDA13P70-1U1M is suitable for a wide range of applications where ESD protection is critical. This includes:

• USB interfaces, including USB 2.0 and USB 3.0
• HDMI ports
• DisplayPort interfaces
• Thunderbolt ports
• Antenna connections
• Other high-speed data lines in consumer electronics, mobile devices, and computing equipment

Conclusion

In summary, the ESDA13P70-1U1M from STMicroelectronics is an essential component for designers looking to enhance the ESD protection in their electronic designs. Its small footprint, low capacitance, and high-performance characteristics make it a top choice for safeguarding high-speed data lines in a multitude of applications.
