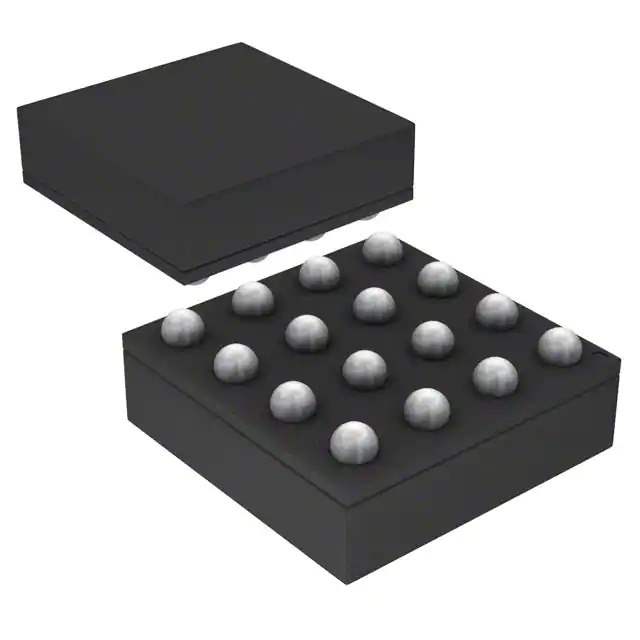

The EMIF06-MSD03F3 is a highly integrated solution designed by STMicroelectronics to provide superior ElectroMagnetic Interference (EMI) filtering and ElectroStatic Discharge (ESD) protection. This compact component is specifically tailored for the protection of high-speed interfaces, such as USB 2.0, HDMI, and LVDS lines, making it an ideal choice for a wide range of consumer electronics, including smartphones, tablets, laptops, and digital cameras.

Key Features

• EMI Filtering: The EMIF06-MSD03F3 includes integrated pi-filters that provide excellent attenuation of unwanted EMI noise, ensuring signal integrity for high-speed data lines.
• ESD Protection: It offers robust ESD protection conforming to IEC 61000-4-2 level 4, safeguarding sensitive components against electrostatic discharges up to 15kV (air discharge) and 8kV (contact discharge).
• High-Speed Data Line Compatibility: Designed to support high-speed data protocols, maintaining signal fidelity without compromising data rates.
• Low Capacitance: The device features very low line capacitance, which minimizes signal attenuation and is critical for maintaining the integrity of high-speed signals.
• Compact Footprint: With its small form factor, the EMIF06-MSD03F3 saves valuable board space, making it suitable for space-constrained applications.

Applications

The versatility of the EMIF06-MSD03F3 allows it to be used in a multitude of applications where EMI filtering and ESD protection are paramount. Its performance and small size make it particularly beneficial in:

• Portable electronic devices
• Communication systems
• Computing platforms
• Video and audio interfaces
• USB and HDMI ports

Quality and Reliability

STMicroelectronics is renowned for its commitment to quality and reliability, and the EMIF06-MSD03F3 is no exception. Manufactured with precision and subjected to rigorous testing, this component ensures consistent performance and durability across various environmental conditions.

Integrating the EMIF06-MSD03F3 into your design will not only enhance the protection of your electronic systems but also contribute to an overall improvement in the user experience by maintaining the integrity and reliability of high-speed data transfers.
