STMicroelectronics E-TDA7560A - Multifunctional Car Radio Amplifier

The E-TDA7560A is a potent audio amplifier from STMicroelectronics, designed specifically for the demanding environment of car audio applications. As part of the TDA series, this integrated circuit is engineered to provide a high-quality audio experience for in-car entertainment systems.

At the heart of the E-TDA7560A is the advanced BCD (Bipolar/CMOS/DMOS) technology, which allows for the integration of analog signal-processing functions with digital control. This results in a highly efficient audio amplifier with excellent power output. It is capable of delivering a remarkable 4 x 50W of continuous power output, ensuring that users can enjoy a robust and dynamic sound environment within their vehicles.

The E-TDA7560A is also equipped with a range of features to enhance its performance and reliability. It includes a built-in mute and standby function, which allows for a reduction in power consumption when the amplifier is not in use. Additionally, the device boasts a flexible mute function that can be controlled externally for seamless integration into the car's audio system.

One of the standout features of the E-TDA7560A is its advanced protection system. The amplifier is designed with protections against output DC and AC short circuits to ground, overrating chip temperature, and load dump voltage surge. This ensures that the device remains safe and operational even under challenging conditions, providing peace of mind for both manufacturers and end-users.

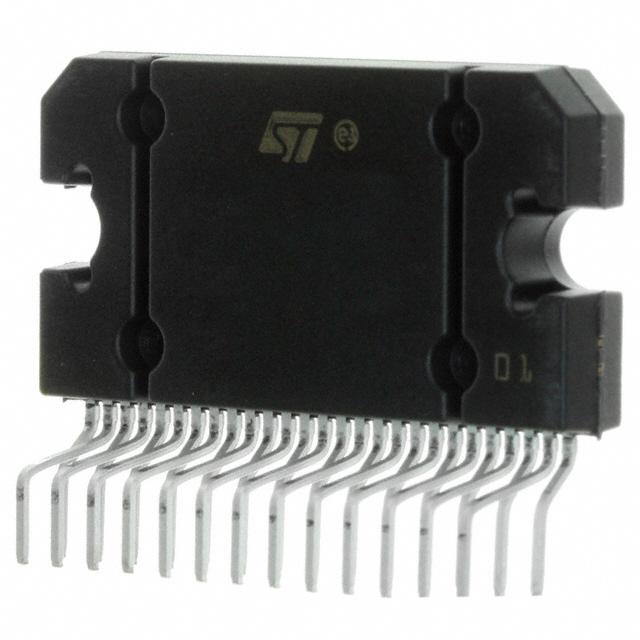

For ease of installation, the E-TDA7560A comes in a 25-pin Flexiwatt package, which not only saves space but also makes it easier to mount on a variety of car audio boards. The amplifier's pinout is optimized for simple, straightforward PCB routing, reducing the complexity of design and assembly.

In summary, the E-TDA7560A from STMicroelectronics is a versatile and powerful audio amplifier, perfect for enhancing the in-car audio experience. Its combination of high power, advanced features, and robust protection systems makes it an ideal choice for car radio applications where performance and reliability are paramount.
