BTW68-1000RG - STMicroelectronics

The BTW68-1000RG from STMicroelectronics is a robust and high-performing thyristor, also known as a silicon-controlled rectifier (SCR), designed for applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. This SCR is especially suited for heavy-duty operations where power efficiency and reliability are crucial.

Key Features

• Voltage Capacity: The device can withstand voltages up to 1000V, making it an excellent choice for high voltage applications.
• Current Rating: It has a current rating of 50A, which allows it to handle significant power levels, suitable for industrial power supplies and motor control circuits.
• High Surge Capability: With its exceptional ability to manage surge currents, the BTW68-1000RG is ideal for applications that experience short bursts of high power demand.
• Gate Trigger Current: The device features a specified gate trigger current (I<sub>GT) that ensures reliable triggering.
• Thermal Resistance: Its low thermal resistance ensures efficient heat dissipation, contributing to its stability and longevity in demanding conditions.

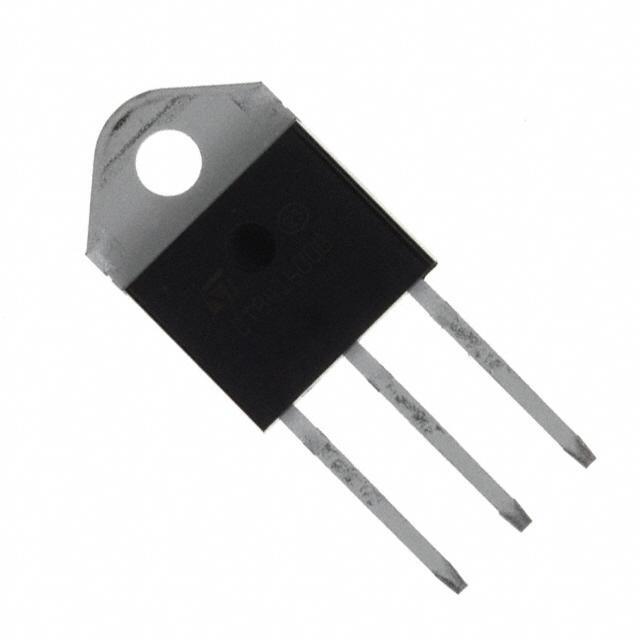

• Package: Housed in a rugged TO-3P package, the BTW68-1000RG is designed for easy mounting and heat sinking, and it is also well-suited for high-power and high-temperature operations.

Applications

The BTW68-1000RG is used in a variety of applications where high voltage and current handling capabilities are required. Some of these applications include:

• Phase control in industrial motor drives
• Controlled rectifier bridges
• Battery chargers
• AC power controllers
• Solid-state relays
• Power regulation circuits

STMicroelectronics has designed the BTW68-1000RG to meet the stringent requirements of industrial and commercial power control applications. Its combination of high voltage and current ratings with robust thermal performance makes it an ideal choice for designers looking for a reliable SCR solution.

For more detailed specifications and application notes, engineers and designers are encouraged to consult the comprehensive datasheets and technical documentation available from STMicroelectronics.
