STMicroelectronics Product Overview: 74H1G66STR Analog Switch

The 74H1G66STR from STMicroelectronics is a high-performance single-pole, single-throw (SPST) analog switch, designed to deliver efficient switching performance for a wide array of applications. This switch is part of STMicroelectronics' 74 series, renowned for its reliability and versatility in integrating with various electronic circuits.

Constructed with advanced silicon-gate CMOS technology, the 74H1G66STR offers a perfect balance between low power consumption and high-speed operation. Its bidirectional signal flow, with an on-resistance of typically 35 ohms, ensures minimal signal distortion and provides excellent linearity, making it an ideal choice for precision analog signal switching.

The device operates from a single power supply ranging from 1.65V to 5.5V, making it suitable for portable and battery-powered devices, as well as accommodating the needs of various logic systems. Its low power consumption is further complemented by its wide operating temperature range of -55°C to +125°C, ensuring consistent performance across diverse environmental conditions.

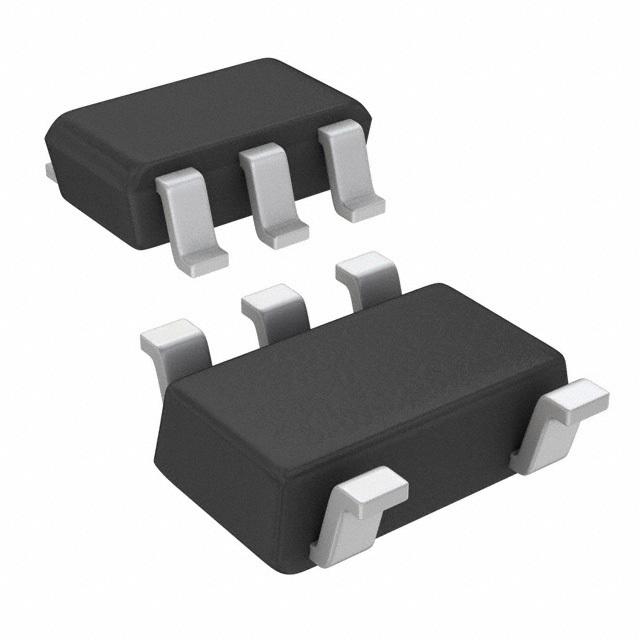

Featuring a 5-pin SOT-23 package, the 74H1G66STR is designed with space-saving in mind, making it an excellent choice for compact PCB layouts. This package is not only practical but also promotes ease of manufacturing and integration into existing designs without the need for extensive rework.

Key applications of the 74H1G66STR include, but are not limited to, signal routing, multiplexing, and various analog and digital switching tasks in consumer electronics, communication devices, and industrial systems. Its robust design also makes it suitable for harsh environments where reliability is paramount.

With its combination of low on-resistance, wide voltage range, and compact footprint, the 74H1G66STR from STMicroelectronics stands out as a versatile and reliable component for designers looking to enhance their electronic designs with efficient and precise switching capabilities.
