Same model may have multiple batches, images only for reference.

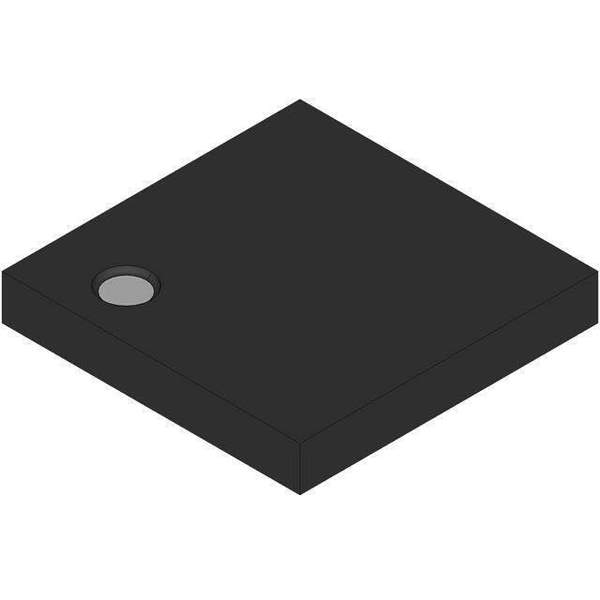

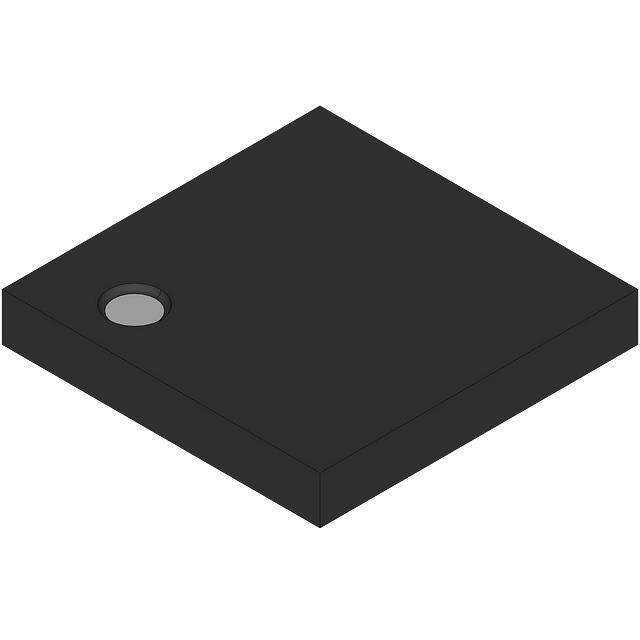

FSA2457UMX Real Image
Same model may have multiple batches, images only for reference.

FSA2457UMX

Part No FSA2457UMX
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL DPDT 16UMLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Switch Circuit DPDT
Number of Circuits 2
Max On Resistance 7 Ohm
Single Supply Voltage (V+) 2.7 V to 3.6 V
Max Switch Time (Ton,Toff) 7ns, 4ns
-3db Bandwidth 160MHz
Channel Capacitance(CS off, CD off) 6pF
Max Leakage Current (IS off) 1μA
Crosstalk -54dB @ 25MHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-UMLP (1.8x2.6)
Win Source Part Number 016501-FSA2457UMX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FSA2457UMX CAD Model

Description

The Fairchild/ON Semiconductor FSA2457UMX is a DPDT switch circuit integrated circuit.

  • -3db Bandwidth: 160MHz
  • Max On Resistance: 7 Ohm
  • Channel Capacitance: 6pF
  • Package: 16-UMLP (1.8x2.6)
  • Single Supply Voltage (V+): 2.7 V to 3.6 V
  • Max Switch Time (Ton): 7ns
  • Max Switch Time (Toff): 4ns
  • Max Leakage Current: 1μA
