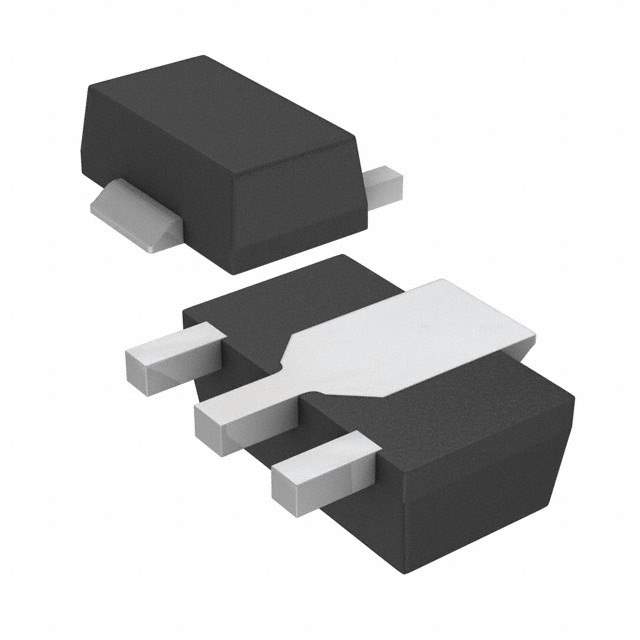

The 3STF1640 is a high-performance, N-channel Trench Field Stop IGBT (Insulated Gate Bipolar Transistor) developed by STMicroelectronics. This IGBT is designed to offer a superior combination of high efficiency, fast switching, and robust thermal performance, making it suitable for a wide range of power applications.

Key Features

• Maximum Ratings: The device boasts a robust collector-emitter voltage (V<sub>CE) of 600V, ensuring reliable operation in high-voltage applications.
• Current Capability: It can handle a continuous collector current (I<sub>C) of up to 40A at 25°C, making it capable of driving high current loads.
• Low On-Resistance: The 3STF1640 has a low on-state voltage (V<sub>CE(sat)), which reduces conduction losses and improves overall efficiency.
• High-Speed Switching: With fast switching capabilities, this IGBT can operate efficiently at high frequencies, thereby reducing switching losses and enabling more compact and cost-effective designs.
• Co-Packaged Diode: It includes a free-wheeling diode co-packaged with the IGBT, which simplifies circuit design and enhances performance during the diode reverse recovery phase.

Applications

The 3STF1640 is ideal for a variety of applications that require high efficiency and power density. These include:

• Uninterruptible Power Supplies (UPS)
• Motor Drives
• Power Factor Correction (PFC) circuits
• Induction Heating
• Welding Equipment

Reliability and Quality

STMicroelectronics is known for its commitment to quality and reliability. The 3STF1640 is no exception, as it is manufactured with state-of-the-art technology and subjected to rigorous testing to ensure high performance and durability over its lifespan.

Environmental Compliance

The 3STF1640 complies with RoHS and other environmental directives, reflecting STMicroelectronics' dedication to environmental sustainability and the production of eco-friendly components.
