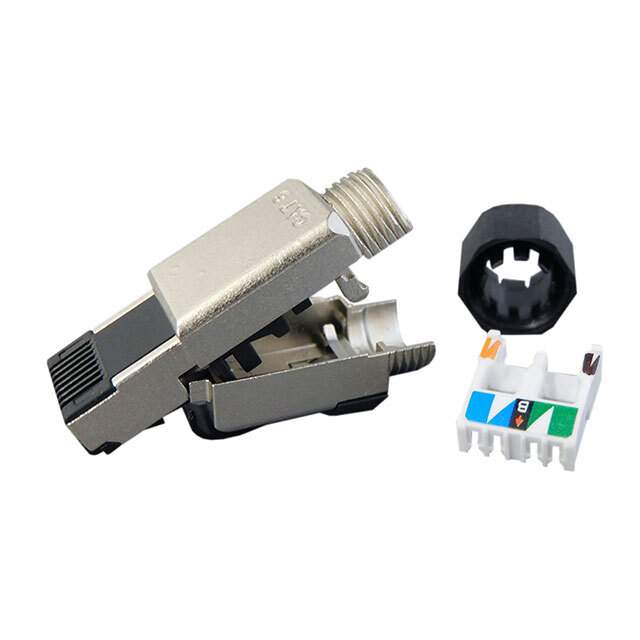

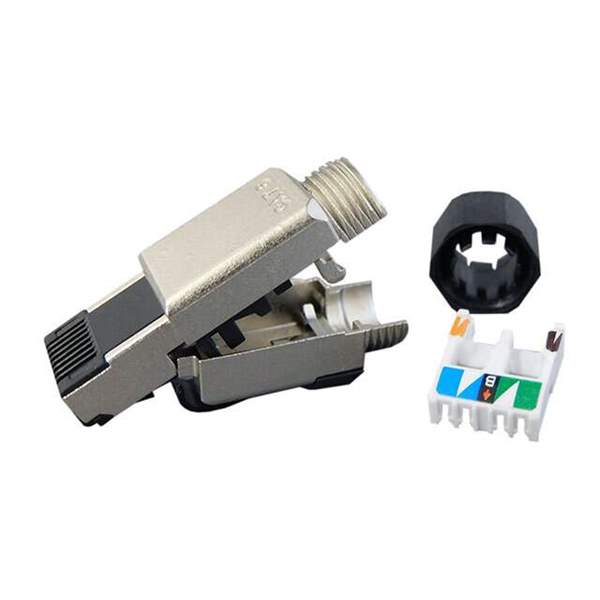

Same model may have multiple batches, images only for reference.

SS-39300-001

Name: SS-39300-001
Brand: Stewart Connector
SKU: 1096123
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SS-39300-001
Manufacturer	Stewart Connector
Catalog	Modular Connectors
Description	MOD PLUG PUNCH DOWN RJ45 CAT6 / Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6 IDC
Datasheet	SS-39300-001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Plugs
Mfr	Stewart Connector
Series	39
Package	Bulk
Connector Type	Plug
Cable Type	Round Cable, Solid or Stranded Wires
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Features	Strain Relief
Shielding	Shielded
Ratings	Cat6
Ingress Protection	IP20
Termination	IDC
Length	1.736" (44.10mm)
Color	Silver
Wire Gauge	23-26 AWG
Contact Finish	Gold
Contact Finish Thickness	50.0µin (1.27µm)
Contact Material	Phosphor Bronze Alloy
Housing Material	Zinc Alloy
Base Product Number	SS-39300
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Names	380-1489
Standard Package	280
Win Source Part Number	1096123-SS-39300-001
Ultra Librarian 3D Model	Ultra Librarian SS-39300-001 CAD Model

Alternative Products

Description

The 996389 is a modular connector plug manufactured by Stewart Connector.

Configuration: 8p8c (RJ45, Ethernet)
Shielded: Yes
Voltage Rating: -
Ingress Protection: IP20
Cable Type: Round
Wire Type: Solid or Stranded
Wire Gauge: 23-26 AWG
Length: 1.736" (44.10mm)
Packaging: 280
REACH: Unaffected
ECCN: EAR99
