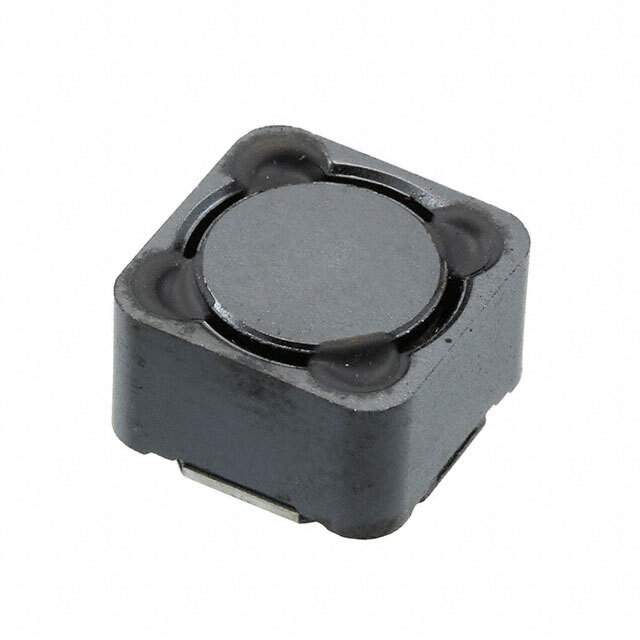

SRR1280A-100M Real Image
Same model may have multiple batches, images only for reference.

SRR1280A-100M

Part No SRR1280A-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 6A 19.5 MOHM SMD / 10 µH Shielded Inductor 6 A 19.5mOhm Max Nonstandard
Datasheet
SRR1280A-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 6.3A
Shielding Shielded
DC Resistance (DCR) 19.5mOhm Max
Q @ Freq 24 @ 2.52MHz
Frequency - Self Resonant 17MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package 1280
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Base Product Number SRR1280A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRR1280A-100MDKR,SRR1280A-100MCT,SRR1280A-100MTR,SRR1280A-100M-ND
Standard Package 400
Win Source Part Number 1328022-SRR1280A-100M
Ultra Librarian 3D Model Ultra Librarian SRR1280A-100M CAD Model

Description

The Bourns Inc. SRR1280A-100M is a shielded, fixed inductor that comes with a package of reel-TR. This inductor has an inductance of 10 μH with a tolerance of ±20%. The inductor has a ferrite core material and a DC resistance of 19.5mOhm max. The inductor has a height of 0.315" (8.00mm) and a dimension of 0.492" L x 0.492" W (12.50mm x 12.50mm). The inductor is rated AEC-Q200 and has a frequency of self-resonant of 17MHz. The inductor is ideal for use in Inductors, Coils, Chokes>Fixed Inductors.
