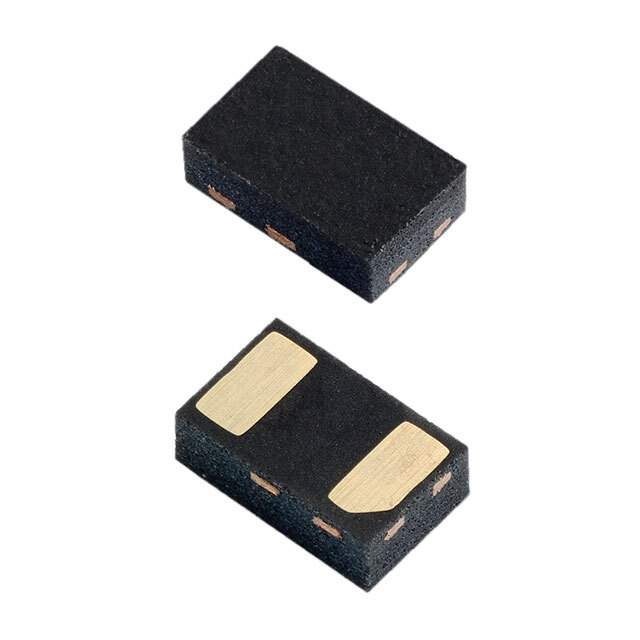

Same model may have multiple batches, images only for reference.

SP1105-01UTG

Name: SP1105-01UTG
Brand: Littelfuse Inc.
SKU: 1299987
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP1105-01UTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SPA®
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Clamping (Max) @ Ipp	10.9V (Typ)
Current - Peak Pulse (10/1000µs)	70A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	630pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	0603 (1610 Metric)
Supplier Device Package	2-DFN (1.6x1)
Other Names	-SP1105-01UTG,F10108CT,F10108DKR,F10108TR
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
Win Source Part Number	1299987-SP1105-01UTG
Ultra Librarian 3D Model	Ultra Librarian SP1105-01UTG CAD Model

Alternative Products

Description

The electronic component with a Win Source Part Number of 1299987-SP1105-01UTG is a Zener type belonging to the Circuit Protection category.

Series: SPA®
Package: 3,000
Mounting Style: SMD (SMT)
Voltage-Reverse Standoff: 5V (max)
Voltage-Clamping: 10.9V (typ) @ Ipp
Capacitance @ Frequency: 630pF @ 1MHz
Current-Peak Pulse: 70A (8/20μs)
Package/Case: 0603 (1610 Metric)
Supplier Device Package: 2-DFN (1.6x1)
Temperature Range: -40°C to 125°C (TA)
