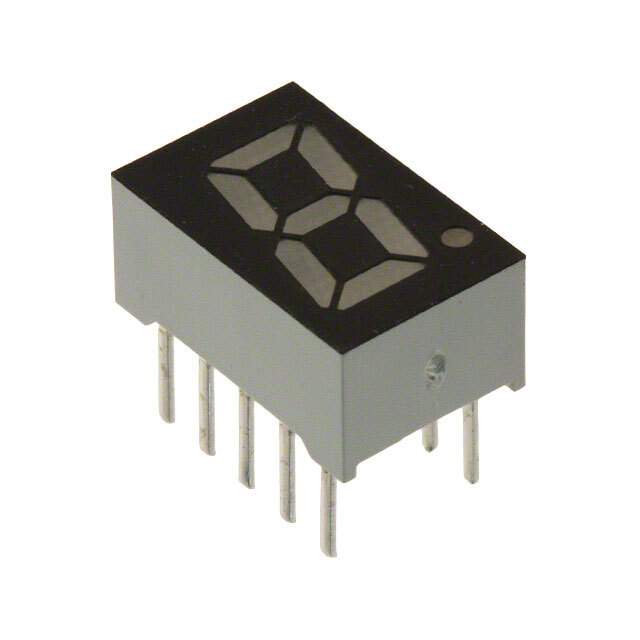

NKR131SB Real Image
Same model may have multiple batches, images only for reference.

NKR131SB

Part No NKR131SB
Manufacturer Stanley Electric Co
Catalog Display Modules - LED Character and Numeric
Description Numeric Display/Case Size 7.0 x 11.0 mm
Datasheet
NKR131SB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Stanley Electric Co
Packaging Tray
Part Status Obsolete(EOL)
Number of Characters 1
Size 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm)
Digit/Alpha Size 0.31" (8.00mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) (Typ) 1.7V
Current - Test 10mA
Millicandela Rating 2.8mcd
Wavelength - Peak 660nm
Power Dissipation (Maximum) 40mW
Package 10-DIP (0.209", 5.30mm)
Win Source Part Number 1231511-NKR131SB
Manufacturer Homepage www.stanley.co.jp/e/
Popularity Medium
Supply and Demand Status Limited
Family Name NKR131S
Introduction Date July 25, 2006
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian NKR131SB CAD Model

Description

The NKR131SB is a red 7-segment display manufactured by Stanley Electric Co.

  • Color: Red
  • Type: 7-Segment Display
  • Millicandela Rating: 2.8mcd
  • Voltage Forward (Vf): 1.7V
  • Popularity Rating: Medium
  • Supply and Demand Status: Limited
  • Status: Obsolete (EOL)
  • Alternative Parts: HDSP-U213-D0000, LA-301VLN, and LAP-301VL
