Same model may have multiple batches, images only for reference.

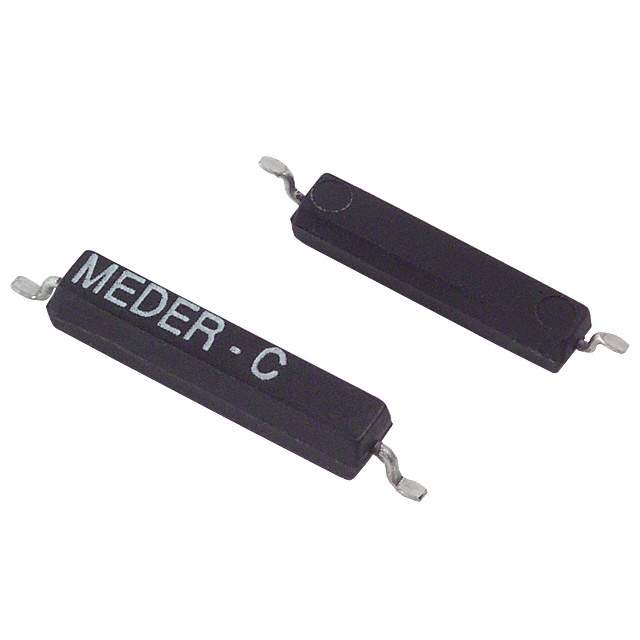

MK16-C-2 Real Image
Same model may have multiple batches, images only for reference.

MK16-C-2

Part No MK16-C-2
Manufacturer Standex-Meder Electronics
Catalog Magnetic, Reed Switches
Description agnetic Reed Switch / SWITCH REED SPST-NO 400MA 200V
Datasheet
MK16-C-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Standex-Meder Electronics
Packaging Reel - TR
Status Active
Type Molded Body
Circuit SPST-NO
Operate Range 15 to 20AT
Current - Switching 400mA (AC/DC)
Voltage - Switching AC 200V
Voltage - Switching DC 200V
Power - Rated 10W
Operate Time 0.6ms
Release Time 0.05ms
Mounting SMD (SMT)
Termination Style Gull Wing
Length - Overall 0.614" (15.60mm)
Size - Body 0.457" L x 0.091" W x 0.091" H (11.60mm x 2.30mm x 2.30mm)
Height Above Board 0.094" (2.40mm)
Temperature Range - Operating -40°C to 130°C
Capacitance 0.2pF
Current - Carry 500mA (AC/DC)
Win Source Part Number 091691-MK16-C-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MK16-C-2
Introduction Date March 15, 2007
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MK16-C-2 CAD Model

Description

The Standex-Meder Electronics MK16-C-2 is a molded body gull wing type switch with an operate time of 0.6ms and a release time of 0.05ms.

  • Type: molded body gull wing type switch
  • Operate Time: 0.6ms
  • Release Time: 0.05ms
  • Power Rating: 10W
  • Operate Range: 15 to 20AT
  • Current Switching Capacity: 400mA (AC/DC)
  • Switching Voltage: up to 200V AC/DC
  • Mounting: SMD (SMT)
  • Size: 0.457" L x 0.091" W x 0.091" H (11.60mm x 2.30mm x 2.30mm)
  • Temperature Range: -40°C to 130°C
