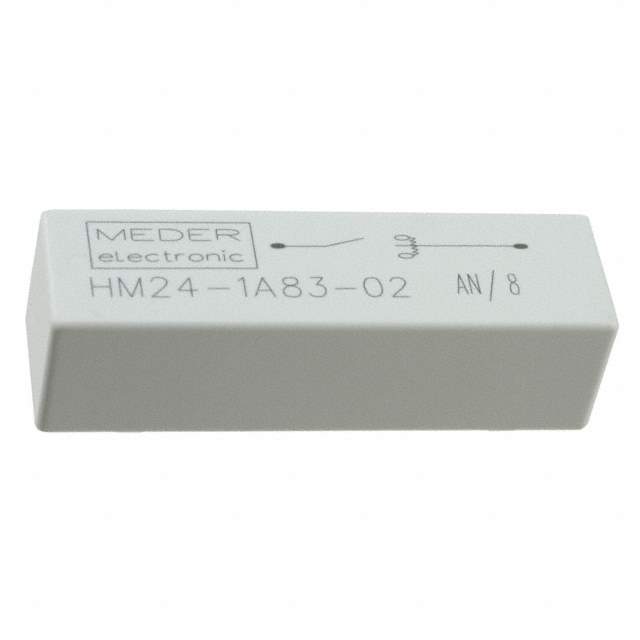

The HM24-1A83-02 is a SPST-NO (1 Form A) reed relay designed for various applications. It has a coil resistance of 1 kOhms and a coil current of 24 mA. The relay operates in a temperature range of -20°C to 70°C and has an operate time of 3 ms and a release time of 1.5 ms. The coil type is non-latching and the coil voltage is 24VDC. The contact rating (current) is 3A, and the switching voltage is 7500VAC and 7500VDC - Max. The relay is mounted through a hole and has a PC pin termination style. It has a seal rating of - and comes in a bulk package with a standard package of 24. The HM24-1A83-02 is manufactured by Standex-Meder Electronics and is an ideal reed relay for various applications.

• Contact Arrangement: SPST-NO (1 Form A)
• Coil Resistance: 1 kOhms
• Coil Current: 24 mA
• Operating Temperature: -20°C to 70°C
• Operate Time: 3 ms
• Release Time: 1.5 ms
• Coil Type: Non-Latching
• Coil Voltage: 24VDC
• Contact Rating (Current): 3A
• Switching Voltage: 7500VAC and 7500VDC - Max
• Mounting Type: Through Hole
• Termination Style: PC Pin
• Seal Rating: -
• Package: Bulk
• Standard Package: 24
