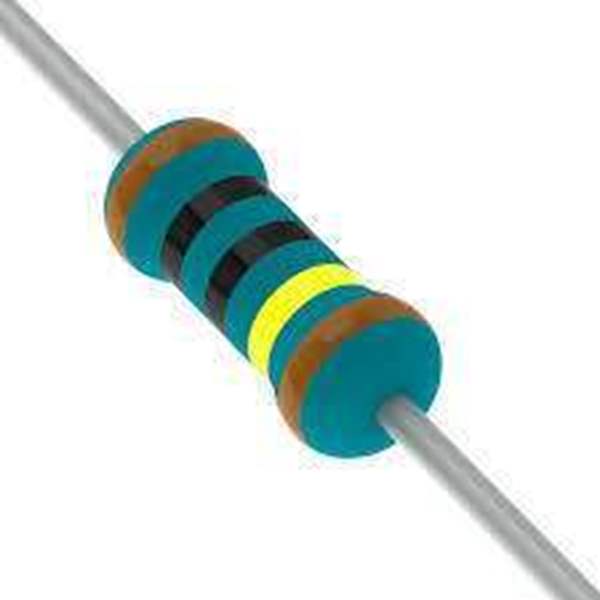

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1304848-RNV14FAL220K
Manufacturer Stackpole Electronics Inc
Category Resistors- Through Hole Resistors
Packaging  Cut Tape (CT) Tape & Box (TB)
Part Status Active
Resistance (Ohms) 220 kOhms
Tolerance (+ or -) ±1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Feature Flame Retardant Coating, High Voltage, Moisture Resistant, Pulse Withstanding, Safety
Package / Case Axial
Ultra Librarian 3D Model Ultra Librarian RNV14FAL220K CAD Model

Description

Features<br />• High voltage surge handling per IEC 60065.14.1, up to 7KV • High tolerance to prolonged exposure to temperature and humidity stress • Ideal for applications requiring high stability, reliability and voltage handling; including power inverters, AC adapters and switching power supplies<br /> • 100% RoHS compliant and lead free without exemption • Halogen free<br /> • REACH compliant
