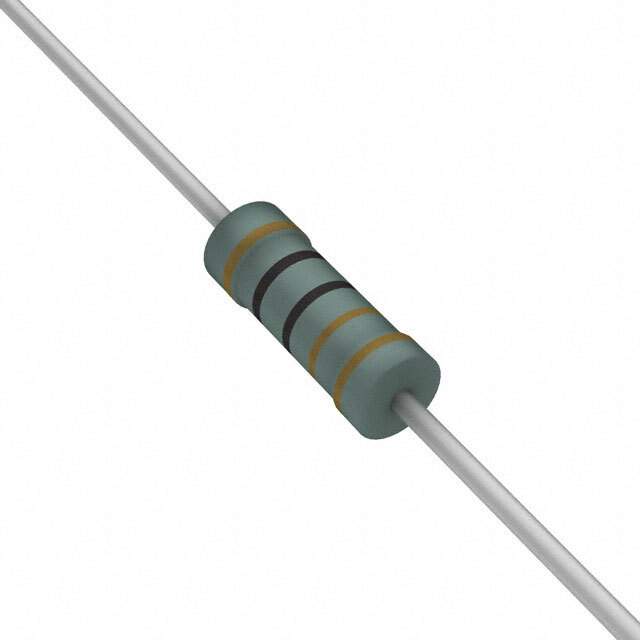

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Stackpole Electronics Inc
Series RNF
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 1 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Flame Retardant Coating, Safety
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.093" Dia x 0.250" L (2.35mm x 6.35mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names RNF1/4T11K1%R,RNF1/4T11K1%R-ND,RNF14FTD1K00DKRINACTIVE,RNF14FTD1K00CT,RNF1/4T11K1%RDKR-ND,RNF14FTD1K00-ND,RNF1/4T11KFRCT,RNF1/4T11KFRDKR-ND,RNF1/4T11KFRTR,RNF14FTD1K00DKR-ND,RNF14FTD1K00DKR,RNF1/4T11K1%RTR,RNF1/4T11KFRDKR,RNF 1/4 T1 1K 1% R,RNF14FTD1K00TR,RNF1/4T11K1%RCT-ND,RNF1/4T11KFRTR-ND,RNF1/4T11KFRCT-ND,RNF1/4T11K1%RTR-ND,RNF1/4T11K1%RDKR,RNF1/4T11K1%RCT,Q5946841
Standard Package 5,000
Win Source Part Number 1219917-RNF14FTD1K00
Ultra Librarian 3D Model Ultra Librarian RNF14FTD1K00 CAD Model

Description

The RNF series through-hole resistor from Stackpole Electronics Inc. is a metal film composition resistor with a resistance of 1 kOhms and a power rating of 0.25W.

  • Resistance: 1 kOhms
  • Power Rating: 0.25W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Feature: Flame Retardant Coating and Safety Feature
  • Package: Tape & Reel (TR) or Cut Tape (CT)
  • Height: 0.093 inches (2.35mm)
  • Diameter: 0.250 inches (6.35mm)
  • Package Type: Axial
  • Terminations: 2
  • Element Configuration: Common Cathode
  • Temperature Range: -55°C to 155°C
  • ECCN: EAR99
