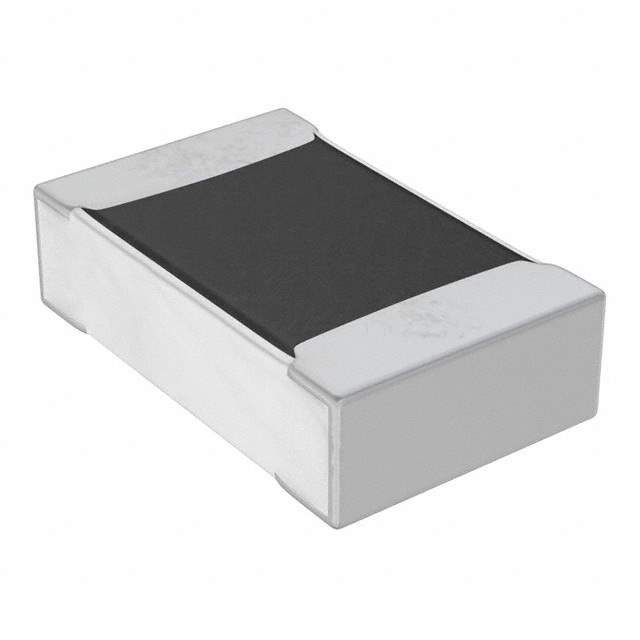

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RNCP
Package Tape & Reel
Resistance 7.5 kOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.122" L x 0.059" W (3.10mm x 1.50mm)
Height - Seated (Max) 0.025" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names RNCP1206T17.5KFRDKR,RNCP1206T17.5KFRCT,RNCP1206FTD7K50TR,RNCP1206T17.5KFRTR,RNCP 1206 T1 7.5K 1% R,RNCP1206T17.5KFRCT-ND,RNCP1206FTD7K50CT,RNCP1206T17.5KFRTR-ND,RNCP1206FTD7K50DKR,RNCP1206T17.5KFRDKR-ND
Standard Package 5,000
Win Source Part Number 1028525-RNCP1206FTD7K50
Ultra Librarian 3D Model Ultra Librarian RNCP1206FTD7K50 CAD Model

Description

The RNCP1206FTD7K50 is a 7.5 kOhm, 0.5W, ±1% tolerance, chip resistor designed for surface-mount applications.

  • Series: RNCP
  • Package/Case: 1206 (3216 Metric)
  • Composition: Thin Film
  • Features: Anti-Sulfur
  • Temperature Coefficient: ±100ppm/°C
  • Packaging: Tape & Reel
  • Units per Package: 5,000
  • Resistance: 7.5 kOhm
  • Power: 0.5W
  • Tolerance: ±1%
  • ECCN: EAR99
  • Popularity: Low
  • Alternative Parts: ERJ-8ENF7501V, RK73H2BTTD7501F, RC1206FR-077K5L, AC1206FR-077K5L, MCR18EZPF7501, CRCW12067K50FKEA
