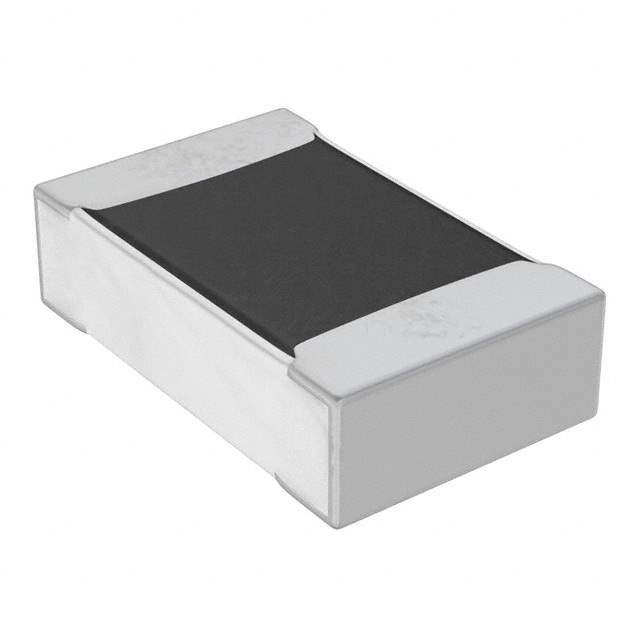

RNCP0805FTD1K00 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RNCP
Package Tape & Reel
Resistance 1 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.025" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names RNCP 0805 T1 1K 1% R,RNCP0805T11KFRCT,RNCP0805T11KFRDKR-ND,RNCP0805FTD1K00DKR,RNCP0805FTD1K00CT,RNCP0805FTD1K00TR,RNCP0805T11KFRDKR,RNCP0805T11KFRTR,RNCP0805T11KFRCT-ND,RNCP0805T11KFRTR-ND
Standard Package 5,000
Win Source Part Number 1118487-RNCP0805FTD1K00
Ultra Librarian 3D Model Ultra Librarian RNCP0805FTD1K00 CAD Model

Description

The Stackpole Electronics Inc. RNCP0805FTD1K00 is a thin film chip resistor manufactured by Stackpole Electronics Inc.

  • Resistance: 1 kOhms
  • Tolerance: ±1%
  • Application: electronic devices that require a high-performance power management system
  • Failure Rate: low
  • Feature: anti-sulfur
