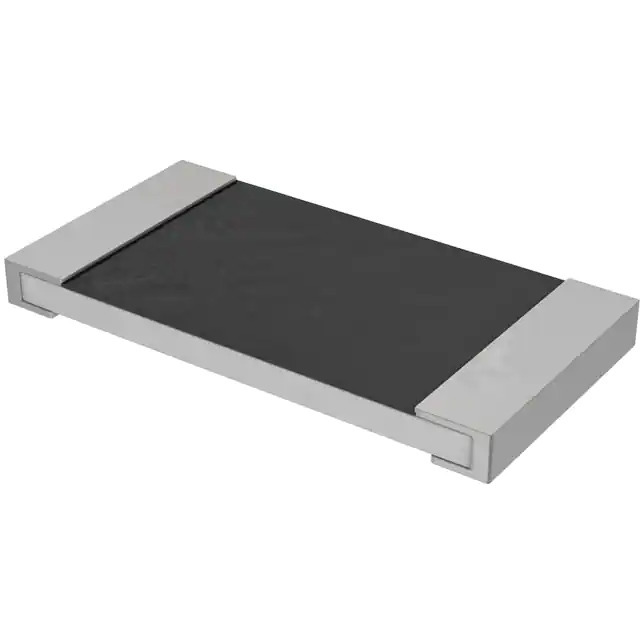

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSR
Package Tape & Reel
Product Status Active
Resistance 500 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375521-CSR2512FTR500
Ultra Librarian 3D Model Ultra Librarian CSR2512FTR500 CAD Model

Description

The CSR2512FTR500 is a chip resistor designed for current sensing applications. Manufactured by Stackpole Electronics Inc, this resistor is part of the CSR series and is currently active in the market.

  • Resistance: 500 mOhms
  • Power (Watts): 2W
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Operating Temperature: -55°C ~ 155°C
  • Package / Case: 2512 (6432 Metric)
  • Size / Dimension: 0.252" L x 0.126" W (6.40mm x 3.20mm)
  • Height - Seated (Max): 0.026" (0.65mm)
  • Mounting Type: Surface Mount
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
  • Composition: Thick Film
  • Number of Terminations: 2
