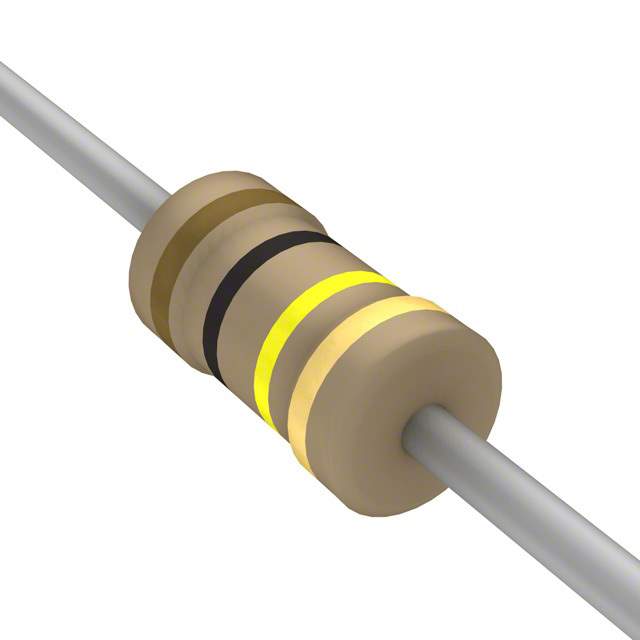

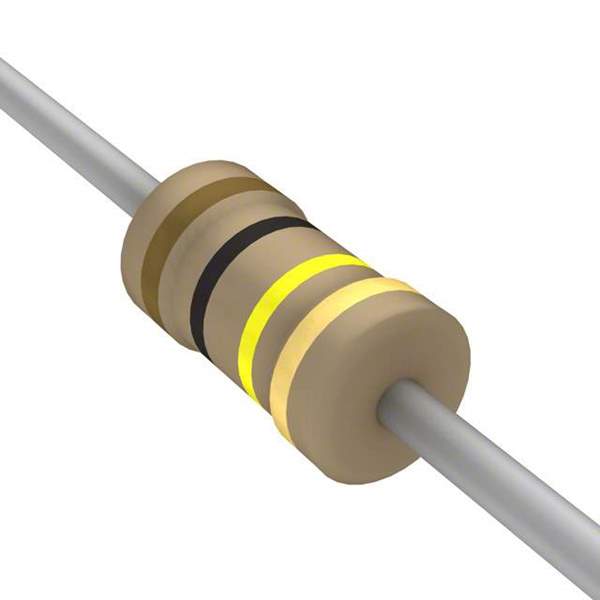

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Stackpole Electronics Inc
Series CF
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 100 kOhms
Tolerance ±5%
Power (Watts) 0.125W, 1/8W
Composition Carbon Film
Features Flame Retardant Coating, Safety
Temperature Coefficient 0/ -850ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.067" Dia x 0.130" L (1.70mm x 3.30mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.10.0065
Other Names CF1/8100KJRCT,CF1/8100KJR-ND,CF18JT100KTR,CF18JT100KCT,CF1/8100K5%R,CF1/8100K5%R-ND,CF 1/8 100K 5% R,CF1/8100KJR,CF1/8100KJRCT-ND,CF1/8100KJRTR,CF1/8100KJRTR-ND
Standard Package 5,000
Win Source Part Number 1131903-CF18JT100K
Ultra Librarian 3D Model Ultra Librarian CF18JT100K CAD Model

Description

This carbon film resistor from Stackpole Electronics Inc has a resistance of 100 kOhms and a tolerance of ±5%.

  • Series: CF
  • Power Rating: 0.125W or 1/8W
  • Temperature Coefficient: 0/ -850ppm/°C
  • Coating: flame retardant
  • Package: axial
  • Terminations: two
  • Standard Package: 5,000
  • Height: 0.067" Dia x 0.130" L (1.70mm x 3.30mm)
  • Operating Temperature: -55°C to 155°C
  • REACH: unaffected
