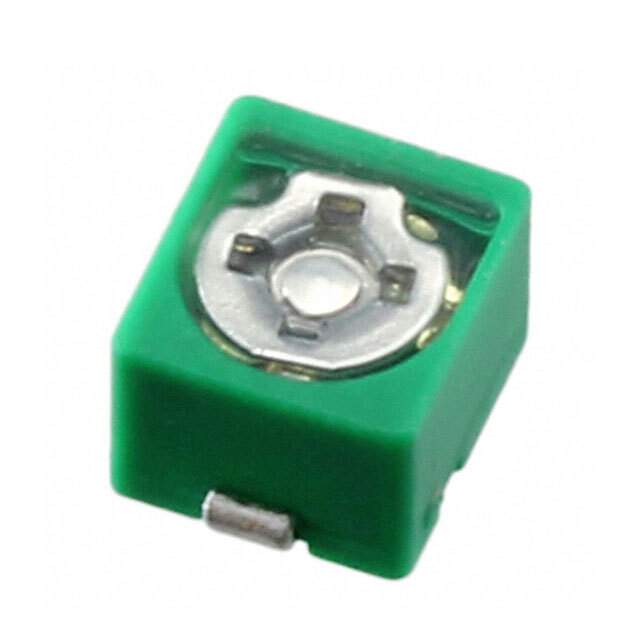

GKG20086-05 Real Image
Same model may have multiple batches, images only for reference.

GKG20086-05

Part No GKG20086-05
Manufacturer Sprague-Goodman
Catalog Trimmers, Variable Capacitors
Description CAP TRIM 4.5-20PF 100V SMD / 4.5 ~ 20pF Trimmer Capacitor 100 V Top Surface Mount
Datasheet
GKG20086-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Trimmers, Variable Capacitors
Mfr Sprague-Goodman
Series SURFTRIM® GKG
Package Tape & Reel
Product Status Obsolete
Capacitance Range 4.5 ~ 20pF
Adjustment Type Top
Voltage - Rated 100 V
Dielectric Material Ceramic
Q @ Freq 500 @ 1MHz
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.114" (2.90mm)
Temperature Range - Operating -25°C ~ 85°C
Mounting SMD (SMT)
Features General Purpose
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.30.0090
Other Names SG9121TR,SG9121-ND,SG9121CT,GKG20086-05-ND,SG9121DKR,SG9121
Standard Package 500
Win Source Part Number 1060790-GKG20086-05
Ultra Librarian 3D Model Ultra Librarian GKG20086-05 CAD Model

Description

The GKG20086-05 is a variable capacitor manufactured by Sprague-Goodman.

  • Series: SURFTRIM® GKG
  • Application: general-purpose use
  • Package: tape & reel
  • Standard Package: 500
  • Capacitance Range: 4.5 ~ 20pF
  • Voltage Rating: 100V
  • Q @ Freq: 500 @ 1MHz
  • Adjustment Type: top
  • RoHS Compliant: Yes
  • Operating Temperature: -25°C to 85°C
  • Status: obsolete
  • Height: 0.114" (2.90mm) seated
