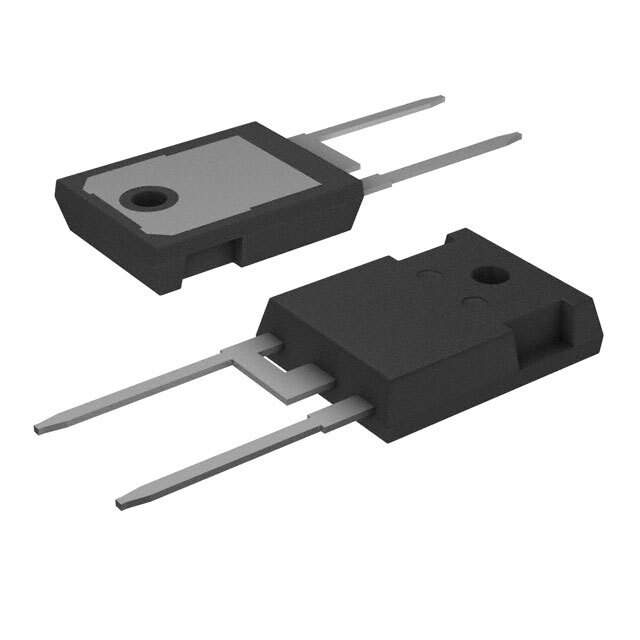

SDUR6040W SMC Diode Solutions
Same model may have multiple batches, images only for reference.

SDUR6040W

Part No SDUR6040W
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 400V 60A TO247AC
Datasheet
SDUR6040W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 1.47 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 45 ns
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AC
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SDUR6040
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366928-SDUR6040W
Ultra Librarian 3D Model Ultra Librarian SDUR6040W CAD Model

Description

The 1366928-SDUR6040W is a rectifier diode from SMC Diode Solutions. It is a standard technology diode with a voltage rating of 400 V.

  • Voltage Rating: 400 V
  • Average Rectified Current: 60A
  • Forward Voltage: 1.47 V @ 60 A
  • Recovery Time: < 500ns
  • Reverse Recovery Time: 45 ns
  • Reverse Leakage Current: 10 μA @ 400 V
  • Mounting Type: Through-Hole
  • Package: TO-247-2
  • Product Status: Active
  • REACH Status: Affected
