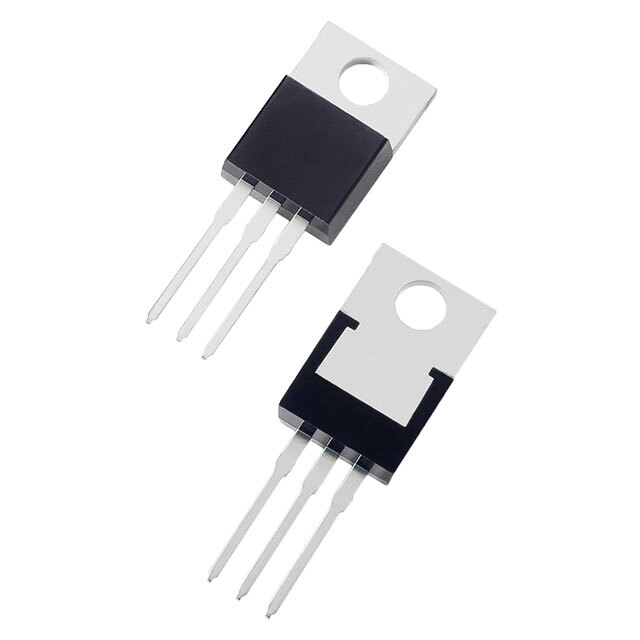

Same model may have multiple batches, images only for reference.
MBRF20100CT SMC Diode Solutions
Same model may have multiple batches, images only for reference.

MBRF20100CT

Part No MBRF20100CT
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 100V ITO220 / 20 Amp Schottky Barrier Rectifier 20 to 100 Volts
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer SMC Diode Solutions
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Voltage - Forward (Vf) (Maximum) at If 800mV at 5A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1mA at 100V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-220-3 Full Pack, Isolated Tab
Supplier Device Package ITO-220AB
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807548-MBRF20100CT
Package Tube;Tube
Product Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 850mV @ 10A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 150µA @ 100V
Operating Temperature - Junction -65°C ~ 175°C
Grade -
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack
Supplier Device Package TO-220FP
Ultra Librarian 3D Model Ultra Librarian MBRF20100CT CAD Model

Description

The SMC Diode Solutions MBRF20100CT is a fast recovery Schottky diode manufactured by SMC Diode Solutions.

  • Current Rating: 200mA (Io)
  • Mounting Style: Through-Hole
  • Supplier Device Package: ITO-220AB
  • Manufacturer Package: TO-220-3 Full Pack, Isolated Tab
  • Temperature Range: -55°C to 150°C
  • Voltage - DC Reverse (Vr) (Maximum): 100V
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 50
  • MSL Level: 1 (Unlimited)
  • Voltage - Forward (Vf) (Maximum) @ If: 800mV @ 5A
  • Current - Reverse Leakage @ Vr: 1mA @ 100V
