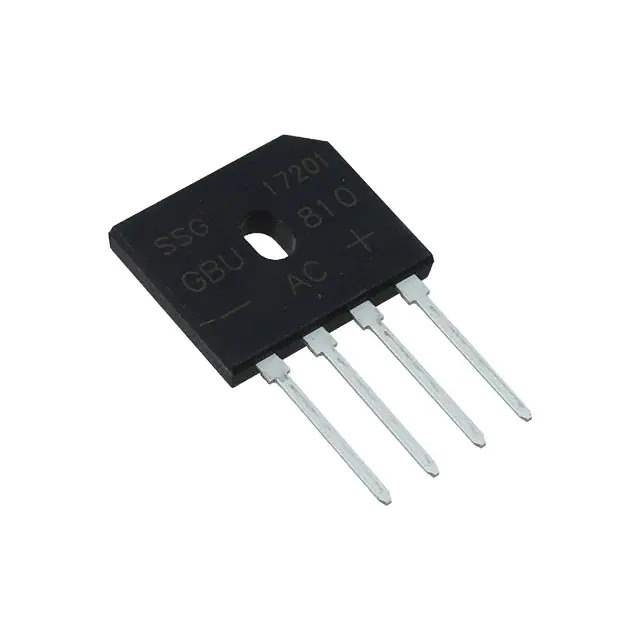

GBU1508 Real Image
Same model may have multiple batches, images only for reference.

GBU1508

Part No GBU1508
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 15A GBU
Datasheet
GBU1508 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 15 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package GBU
Base Product Number GBU1508
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 594327-GBU1508
Ultra Librarian 3D Model Ultra Librarian GBU1508 CAD Model

Description

The SMC Diode Solutions 594327-GBU1508 is a single-phase bridge rectifier diode.

  • Category: Discrete Semiconductor Products - Diodes - Bridge Rectifiers
  • Application: Standard
  • Maximum Average Rectified Current: 15A
  • Forward Voltage Drop: 1.1V @ 15A
  • Reverse Leakage Current: 5µA @ 800V
  • Maximum Peak Reverse Voltage: 800V
  • Mounting Type: Through-Hole
  • Package: 4-ESIP
  • Operating Temperature: -55°C to 150°C
