Same model may have multiple batches, images only for reference.

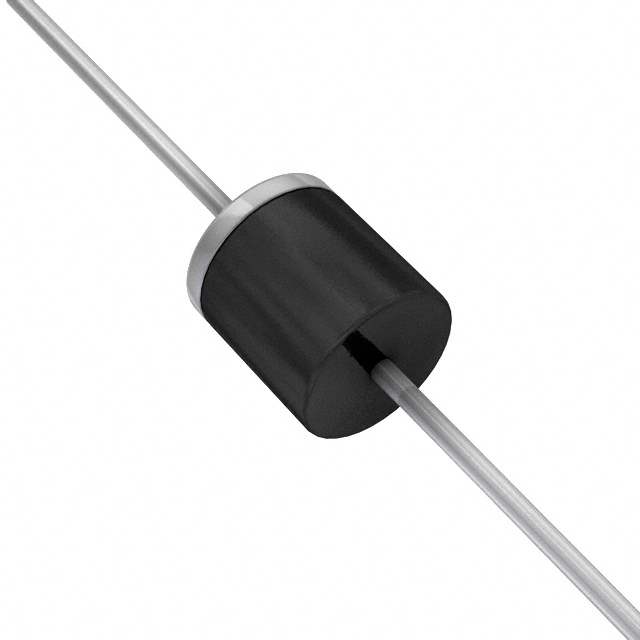

FR606 Real Image
Same model may have multiple batches, images only for reference.

FR606

Part No FR606
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 800V 6A R-6 / Diode 800 V 6A Through Hole R-6
Datasheet
FR606 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 6 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 500 ns
Current - Reverse Leakage @ Vr 10 µA @ 800 V
Capacitance @ Vr, F 100pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case R-6, Axial
Supplier Device Package R-6
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number FR60
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 592933-FR606
Ultra Librarian 3D Model Ultra Librarian FR606 CAD Model

Description

The 592933-FR606 is a fast recovery rectifier diode with a maximum DC reverse voltage of 800V and an average rectified current of 6A.

  • Maximum DC Reverse Voltage: 800V
  • Average Rectified Current: 6A
  • Forward Voltage: 1.2V @ 6A
  • Reverse Recovery Time: 500ns
  • Reverse Leakage Current: 10μA @ 800V
  • Capacitance: 100pF @ 4V and 1MHz
  • Operating Temperature Range: -65°C to 125°C
  • Mounting Type: Through Hole
  • Package: R-6, Axial
  • Lifecycle Status: Obsolete
