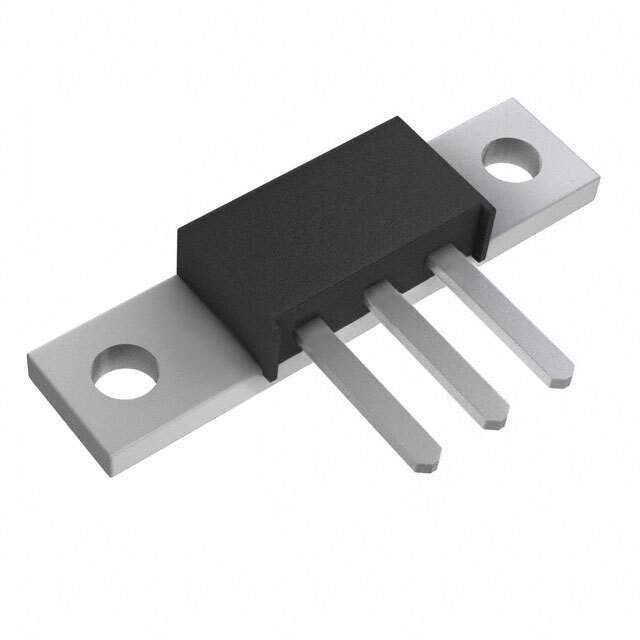

84CNQ045 Real Image
Same model may have multiple batches, images only for reference.

84CNQ045

Part No 84CNQ045
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 45V 40A PRM2 / Diode Array 1 Pair Common Cathode Schottky 45 V 40A Chassis Mount PRM2
Datasheet
84CNQ045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer SMC Diode Solutions
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 620 mV @ 40 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 mA @ 45 V
Operating Temperature - Junction -55°C ~ 125°C
Mounting Chassis Mount
Case / Package PRM2
Supplier Device Package PRM2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 84CNQ045SMC
Standard Package 48
Win Source Part Number 1324061-84CNQ045
Ultra Librarian 3D Model Ultra Librarian 84CNQ045 CAD Model

Description

The 84CNQ045 is a Schottky diode rectifier array produced by SMC Diode Solutions.

  • Voltage - DC Reverse (Vr) (Max): 45 V
  • Voltage - Forward (Vf) (Max) @ If: 620 mV @ 40 A
  • Current - Reverse Leakage @ Vr: 5 mA @ 45 V
  • Current - Average Rectified (Io) (per diode): 40A
  • Package: Bulk
  • Standard Package: 48
  • Operating Temperature Range: from -55°C to 125°C
  • ECCN: EAR99.10.0080
  • ROHS3 Compliant: Yes
