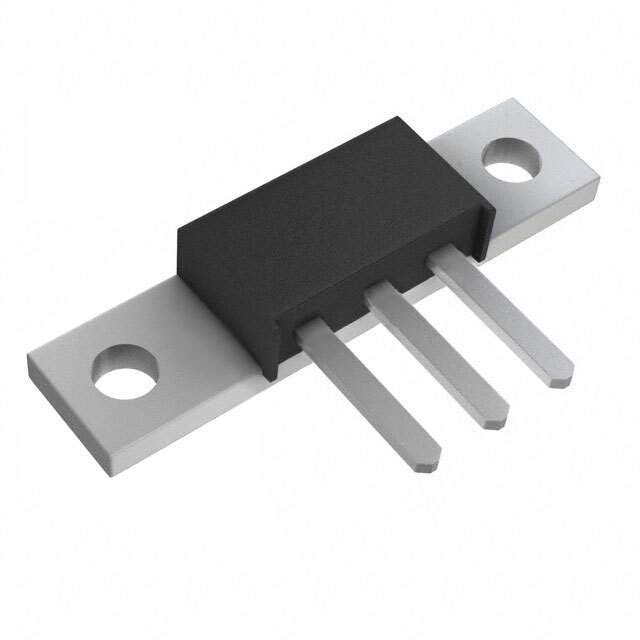

60CNQ040 Real Image
Same model may have multiple batches, images only for reference.

60CNQ040

Part No 60CNQ040
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 40V 30A PRM3  /  Diode Array 1 Pair Common Cathode Schottky 40 V 30A Through Hole PRM3
Datasheet
60CNQ040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr SMC Diode Solutions
Package Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 640 mV @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 mA @ 40 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case PRM3
Supplier Device Package PRM3
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 60CNQ040SMC
Standard Package 48
Win Source Part Number 1196022-60CNQ040
Ultra Librarian 3D Model Ultra Librarian 60CNQ040 CAD Model

Description

The 1196022-60CNQ040 is a Schottky diode with a fast recovery speed of less than 500ns and a maximum voltage of 40V.

  • Recovery Speed: Less than 500ns
  • Maximum Voltage: 40V
  • Forward Voltage: 640mV @ 30A
  • Reverse Leakage Current: 5mA @ 40V
  • Configuration: 1 pair common cathode
  • Average Rectified Current: 30A
  • Mounting: Through-hole
  • Package: PRM3
  • Operating Temperature Range: -55°C to 150°C
  • Manufacturer: SMC Diode Solutions
