Same model may have multiple batches, images only for reference.

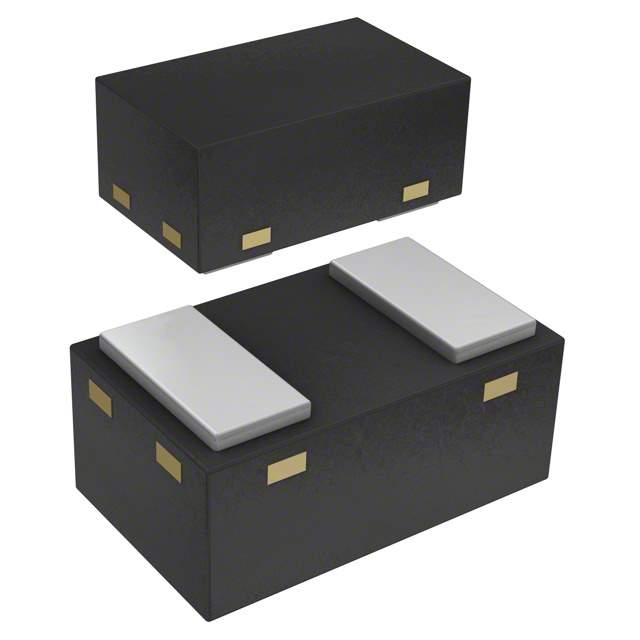

SMP1320-040LF Real Image
Same model may have multiple batches, images only for reference.

SMP1320-040LF

Part No SMP1320-040LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description The Right Products for Your System Applications
Datasheet
SMP1320-040LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Diode Type PIN - Single
Voltage - Peak Reverse (Maximum) 50V
Current - Max 150mA
Capacitance @ Vr, F 0.25pF @ 30V, 1MHz
Resistance @ If, F 900 mOhm @ 10mA, 100MHz
Power Dissipation (Maximum) 750mW
Operating Temperature Range -65°C ~ 150°C (TA)
Package 0402 (1005 Metric)
Manufacturer Package 0402
Win Source Part Number 1252081-SMP1320-040LF
Manufacturer Homepage www.skyworksinc.com
Popularity Medium
Supply and Demand Status Limited
Family Name SMP1320-040
Introduction Date May 05, 2010
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SMP1320-040LF CAD Model

Description

The SMP1320-040LF is a PIN diode from Skyworks Solutions Inc.

  • Supply and Demand Status: Limited
  • Maximum Voltage: 50V
  • Power Dissipation: Up to 750mW
  • Capacitance: 0.25pF @ 30V
  • Resistance: 900mOhm @ 10mA, 100MHz
  • Package: 0402 (1005 Metric)
  • Temperature Range: -65°C to 150°C (TA)
  • Applications: Discrete semiconductor products
