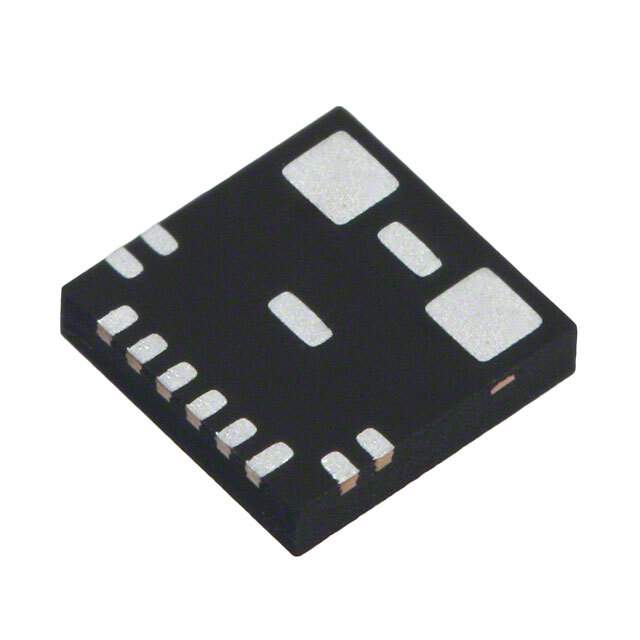

SI8506-C-IM Real Image
Same model may have multiple batches, images only for reference.

SI8506-C-IM

Part No SI8506-C-IM
Manufacturer Skyworks Solutions Inc.
Catalog Current Transducers
Description SENSOR CURRENT XFMR 20A AC / Current Sensor 20A 1 Channel Transformer w/Conditioning Unidirectional 12-VFQFN
Datasheet
SI8506-C-IM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Skyworks Solutions Inc.
Package Tube
Product Status Obsolete
For Measuring AC
Sensor Type Transformer w/Conditioning
Current - Sensing 20A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 98mV/A
Frequency 50kHz ~ 1MHz
Accuracy ±5%
Voltage - Supply 2.7V ~ 5.5V
Current - Supply (Max) 7mA
Temperature Range - Operating -40°C ~ 125°C
Polarization Unidirectional
Mounting SMD (SMT)
Package / Case 12-VFQFN
Supplier Device Package 12-QFN (4x4)
Other Names 336-1546-5
Standard Package 74
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235483-SI8506-C-IM
Ultra Librarian 3D Model Ultra Librarian SI8506-C-IM CAD Model

Description

The Skyworks Solutions Inc. SI8506-C-IM is a current sensor.

  • Sensor Type: Transformer with conditioning
  • Polarization: Unidirectional
  • Current-Sensing: 20A
  • Sensitivity: 98mV/A
  • Accuracy: ±5%
  • Output: Ratiometric Voltage
  • For Measuring: AC
  • Frequency Range: 50kHz to 1MHz
  • Voltage Supply: 2.7V to 5.5V
  • Package: 12-VFQFN package
  • Standard Package: 74
