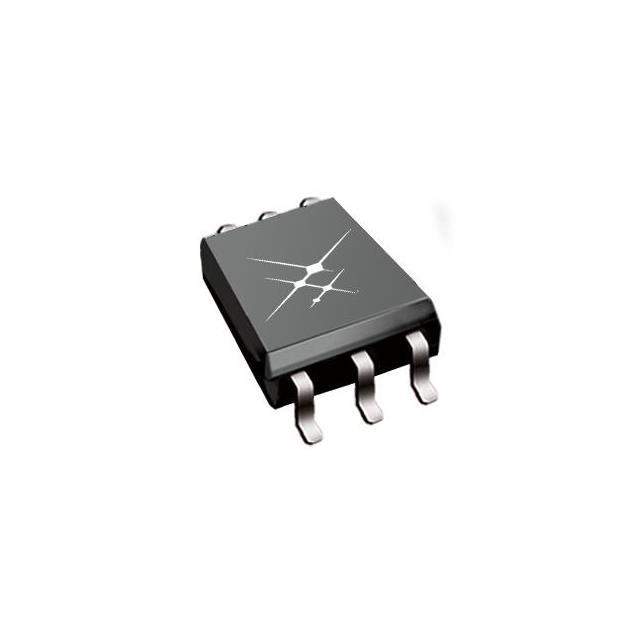

SI8261AAD-C-ISR Real Image
Same model may have multiple batches, images only for reference.

SI8261AAD-C-ISR

Part No SI8261AAD-C-ISR
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 5KV 1CH GATE DRVR 6SDIP / 600mA Gate Driver Capacitive Coupling 5000Vrms 1 Channel 6-SDIP Gull Wing
Datasheet
SI8261AAD-C-ISR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 50ns
Pulse Width Distortion (Max) 28ns
Rise / Fall Time (Typ) 5.5ns, 8.5ns
Current - Output High, Low 400mA, 600mA
Current - Peak Output 600mA
Voltage - Forward (Vf) (Typ) 2.8V (Max)
Current - DC Forward (If) (Max) 30 mA
Voltage - Output Supply 6.5V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package 6-SDIP Gull Wing
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8261
Standard Package 1,000
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243702-SI8261AAD-C-ISR
Ultra Librarian 3D Model Ultra Librarian SI8261AAD-C-ISR CAD Model

Description

The SI8261AAD-C-ISR is an automotive-grade isolator with a capacitive coupling technology.

  • Current Output High: 400mA
  • Current Output Low: 600mA
  • Voltage Forward: 2.8V (max)
  • Rise/Fall Time: 5.5ns/8.5ns
  • Number of Channels: 1
  • Voltage Isolation: 5000Vrms
  • Common Mode Transient Immunity: 35kV/µs
  • Propagation Delay tpLH/tpHL (max): 60ns/50ns
  • Pulse Width Distortion (max): 28ns
  • Package/Case: 6-SOIC (0.295”, 7.50mm Width)
  • Supplier Device Package: 6-SDIP Gull Wing
  • Operating Temperature Range: -40°C to 125°C
  • Approvals: CQC, CSA, UR, and VDE
