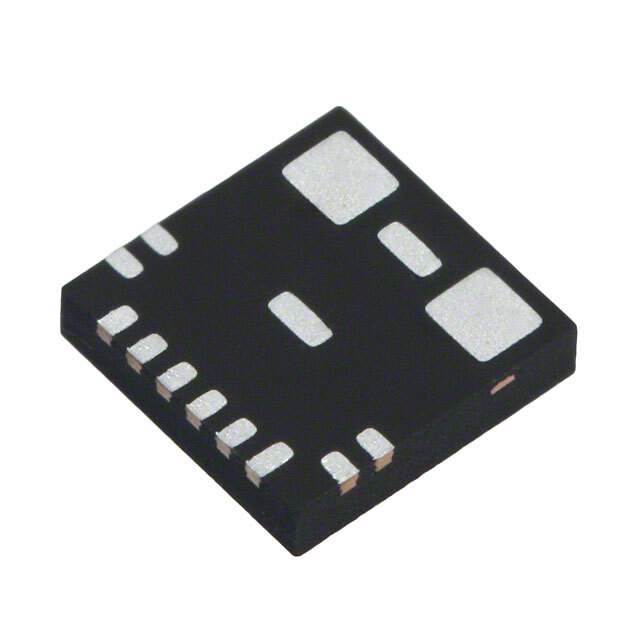

The SI8503-C-GM is an isolated field effect transistor (FET) driver manufactured by Skyworks Solutions Inc. It is designed to drive power MOSFETs or IGBTs in various applications, providing galvanic isolation between the input and output stages. This isolation enhances system safety and reliability.

Applications:

• Switch Mode Power Supplies (SMPS): Driving MOSFETs in power supplies for computers, servers, and industrial equipment.
• Motor Control: Driving IGBTs in motor control applications for industrial automation and robotics.
• Inverters: Driving power devices in solar inverters and uninterruptible power supplies (UPS).
• Welding Equipment: Driving MOSFETs or IGBTs in welding machines.
• Induction Heating: Driving power devices in induction heating systems.

Features:

• Galvanic Isolation: Provides electrical isolation between the input and output stages for safety and noise immunity.
• High Drive Strength: Capable of driving large MOSFETs and IGBTs.
• Fast Switching Speed: Enables efficient switching performance.
• Low Propagation Delay: Minimizes delay between input and output signals.
• Under-Voltage Lockout (UVLO): Prevents operation with insufficient supply voltage.
• Small Package: Compact size for space-constrained applications.

Benefits:

• Enhanced Safety: Galvanic isolation protects control circuitry from high voltages.
• Improved Efficiency: Fast switching speed reduces power losses.
• Increased Reliability: UVLO and other protection features enhance system reliability.
• Simplified Design: Integrated features reduce the need for external components.
• Reduced System Cost: Compact size and integrated functionality minimize overall system cost.

The SI8503-C-GM features a high drive strength and fast switching speed, making it suitable for high-frequency switching applications. It also includes an under-voltage lockout (UVLO) feature to prevent operation with insufficient supply voltage, enhancing system reliability. The device is available in a small surface-mount package, allowing for use in space-constrained applications. Its galvanic isolation provides a high level of safety and noise immunity, making it an ideal choice for demanding industrial and automotive applications.
