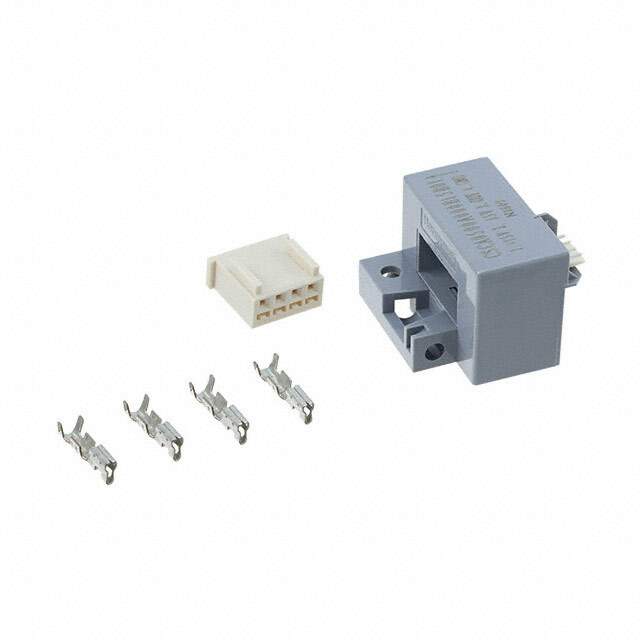

CSCA0500A000B15B01 Real Image
Same model may have multiple batches, images only for reference.

CSCA0500A000B15B01

Part No CSCA0500A000B15B01
Manufacturer Honeywell
Catalog Current Transducers
Description SENSOR CURRENT HALL 500A AC/DC / Current Sensor 500A 1 Channel Hall Effect, Open Loop Bidirectional Module
Datasheet
CSCA0500A000B15B01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 500A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 50kHz
Linearity ±1%
Accuracy ±2%
Voltage - Supply ±15V
Response Time 3µs
Current - Supply (Max) 17mA
Temperature Range - Operating -10°C ~ 80°C
Polarization Bidirectional
Mounting Chassis Mount
Case / Package Module
Base Product Number CSCA0500
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Part Number CSCA0500A000B15B01-ND,480-6584
Standard Package 10
Win Source Part Number 1336529-CSCA0500A000B15B01
Ultra Librarian 3D Model Ultra Librarian CSCA0500A000B15B01 CAD Model

Description

The Honeywell Sensing and Productivity Solutions CSCA0500A000B15B01 is a Hall Effect, open-loop type sensor designed for measuring bidirectional current up to 500A.

  • Sensor Type: Hall Effect, open-loop
  • Current Measurement: bidirectional current up to 500A
  • Output: ratiometric voltage
  • Response Time: 3μs
  • Supply Voltage: ±15V
  • Maximum Current Consumption: 17mA
  • Linearity: ±1%
  • Accuracy: ±2%
  • Measurement Type: AC and DC currents
  • Frequency Range: DC to 50kHz
  • Package: module
  • Mounting Type: chassis mounted
  • RoHS Compliant: Yes
  • Operating Temperature: -10°C to 80°C
