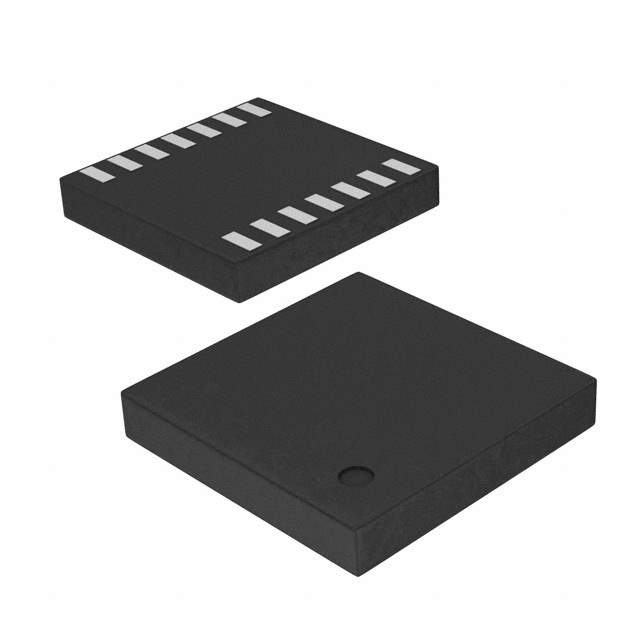

SI8236AA-D-IMR Real Image
Same model may have multiple batches, images only for reference.

SI8236AA-D-IMR

Part No SI8236AA-D-IMR
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 1KV 2CH GATE DRVR 14LGA / 4A Gate Driver Capacitive Coupling 1000Vrms 2 Channel 14-LGA (5x5)
Datasheet
SI8236AA-D-IMR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Product Status Obsolete
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 1000Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns (Max)
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (5x5)
Approval Agency CQC, CSA, UR, VDE
Standard Package 2,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243627-SI8236AA-D-IMR
Ultra Librarian 3D Model Ultra Librarian SI8236AA-D-IMR CAD Model

Description

The Skyworks Solutions Inc. SI8236AA-D-IMR isolator gate driver is a 14-VFLGA package with a tape and reel standard package of 2,500.

  • Temperature Range: -40°C to 125°C
  • Voltage Isolation: 1000Vrms
  • Status: Obsolete
  • Approval: CQC, CSA, UR, and VDE
