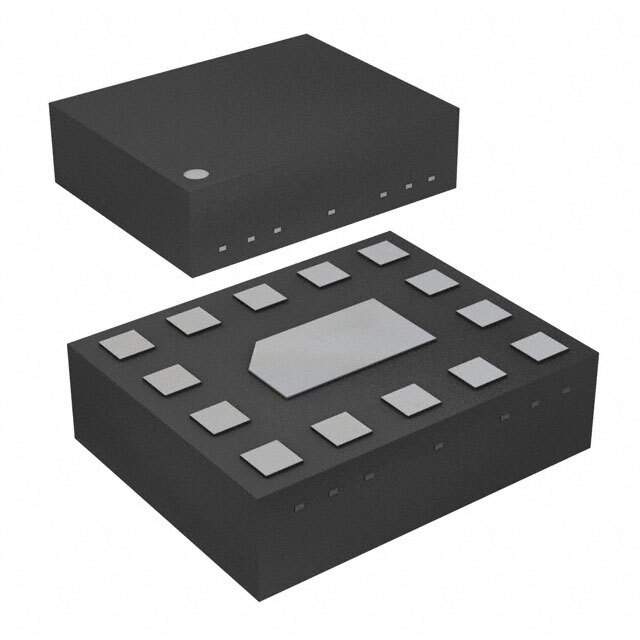

SKY13499-641LF Real Image
Same model may have multiple batches, images only for reference.

SKY13499-641LF

Part No SKY13499-641LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC SWITCH DPDT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Frequency - Lower 700MHz
Frequency - Upper 3GHz
Isolation @ Frequency 23.5dB @ 1GHz
Insertion Loss @ Frequency 0.65dB @ 2.7GHz
IIP3 61dBm (typ)
Circuit DPDT
Impedance 50 Ohm
Temperature Range - Operating -30°C to 90°C
Supply Voltage - Operating 2.5 V to 4.8 V
RF Type LTE, MMDS, WCS, WiMAX
Case / Package 14-QFN (1.6x2)
Win Source Part Number 1096717-SKY13499-641LF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SKY13499-641LF CAD Model

Description

The Skyworks Solutions Inc. DPDT circuit is an ideal solution for RF/IF and RFID applications.

  • Impedance: 50 Ohm
  • Frequency Range: 700MHz to 3GHz
  • Isolation @ Frequency: 23.5dB @ 1GHz
  • Insertion Loss @ Frequency: 0.65dB @ 2.7GHz
  • IIP3: 61dBm (typ)
  • RF Type: LTE, MMDS, WCS, WiMAX
  • Operating Temperature: -30°C to 90°C
  • Supply Voltage: 2.5 V to 4.8 V
  • Package: 14-QFN (1.6x2)
