SKY13317-373LF

Part No SKY13317-373LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description RF Switch SP3T 20MHz to 6GHz 25dB Automotive 8-Pin MLP EP T/R / IC SWITCH RF SP3T 8-MLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel
Part Status Active
Frequency - Lower 20MHz
Frequency - Upper 6GHz
Isolation @ Frequency 25dB @ 5.9GHz (typ)
Insertion Loss @ Frequency 0.8dB @ 5.9GHz
IIP3 50dBm (typ)
Topology Reflective
Circuit SP3T
P1dB 26dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 100°C
RF Type 802.11a/b/g/WiFi, WLAN

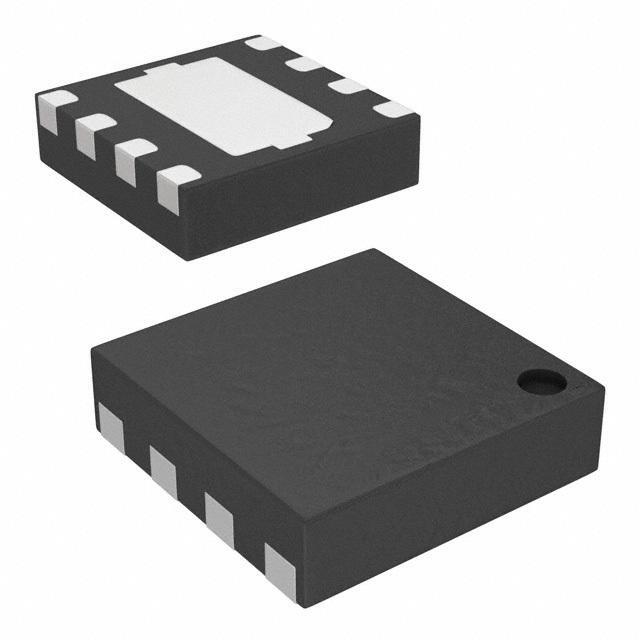

Case 8-XFDFN Exposed Pad
Supplier Device Package 8-MLPQ-UT (1.5x1.5)
Win Source Part Number SKY13317-373LF-324758
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SKY13317-373
Introduction Date January 14, 2009
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SKY13317-373LF CAD Model

Description

The SKY13317-373LF-324758 is a reflective SP3T circuit that is used for RF/IF and RFID applications.

  • Frequency Range: 20MHz to 6GHz
  • Impedance: 50 Ohm
  • Suitable for: 802.11a/b/g/WiFi and WLAN RF types
  • Insertion Loss: 0.8dB @ 5.9GHz
  • Isolation: 25dB @ 5.9GHz
  • IIP3: 50dBm (typ)
  • P1dB: 26dBm (typ) IP1dB
  • Package: 8-MLPQ-UT (1.5x1.5) package with an exposed pad
  • Case: 8-XFDFN
  • Temperature Range: -40°C to 100°C
  • Manufacturer: Skyworks Solutions Inc.
  • Series: SKY13317-373
