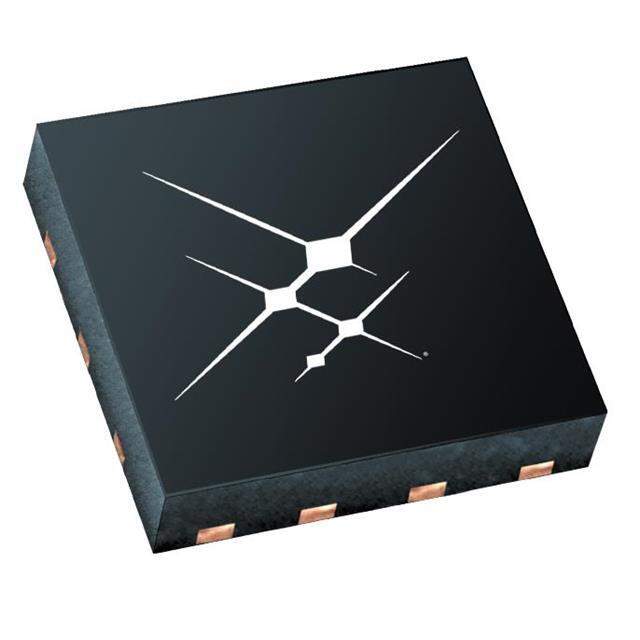

SI8234AB-D-IMR Real Image
Same model may have multiple batches, images only for reference.

SI8234AB-D-IMR

Part No SI8234AB-D-IMR
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRIVER 14LGA / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-LGA (5x5)
Datasheet
SI8234AB-D-IMR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns (Max)
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8234
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 2,500
Win Source Part Number 989743-SI8234AB-D-IMR
Ultra Librarian 3D Model Ultra Librarian SI8234AB-D-IMR CAD Model

Description

The SI8234AB-D-IMR is an automotive grade 2.5kVrms reinforced isolated dual channel gate driver in a 14-LGA package from Skyworks Solutions Inc.

  • Manufacturer: Skyworks Solutions Inc.
  • Grade: Automotive
  • Isolation: 2.5kVrms Reinforced
  • Channels: Dual Channel
  • Package: 14-LGA
  • Technology: Capacitive Coupling
  • Output Current (High): 2A
  • Output Current (Low): 4A
  • Common Mode Transient Immunity: 20kV/μs
  • Maximum Propagation Delay: 60ns
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • Approvals: CQC, CSA, UR, VDE
