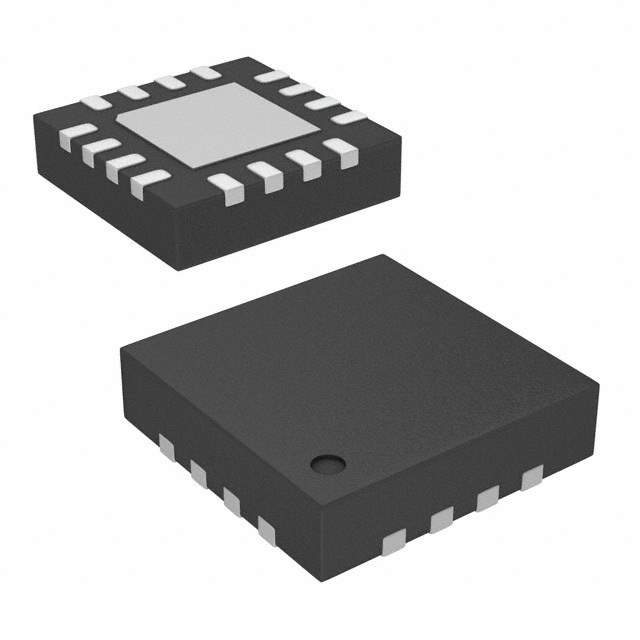

AAT3156ISN Real Image
Same model may have multiple batches, images only for reference.

AAT3156ISN

Part No AAT3156ISN
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 16QFN
Datasheet
AAT3156ISN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 6
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Output Voltage 4.3V
Channel Output Current 30mA
Frequency 1MHz
Dimming AS2Cwire
Applications Backlight, Camera Flash
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-QFN (4x4)
Win Source Part Number 039070-AAT3156ISN
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AAT3156ISN CAD Model

Description

AAT3156ISN Adaptive 4-Channel LED Driver

The AAT3156ISN is an advanced 4-channel LED driver, optimized for adaptive efficiency. This device offers excellent current matching, making it perfect for applications requiring uniform brightness across multiple LEDs.

  • LCD TV backlighting
  • Automotive interior lighting
  • Architectural lighting systems

Features and Benefits:

  • Adaptive 4-channel output for consistent illumination
  • High current accuracy ensures uniform brightness
  • Compact design supports space-constrained applications
  • Dual mode operation for flexible configurations
  • Built-in thermal protection for increased reliability

Additional Details:

Designed with an emphasis on energy efficiency and reliability, the AAT3156ISN is suitable for both commercial and industrial use, offering versatility and high performance in demanding environments.
