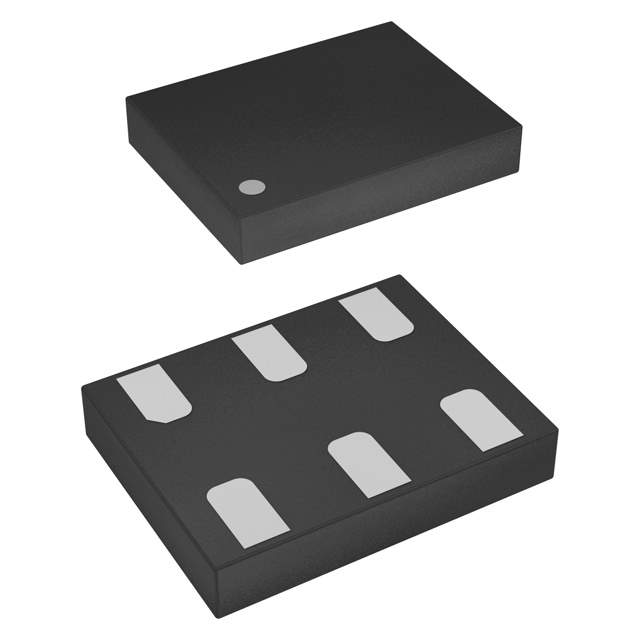

SIT9120AC-1B2-33E100.000000 Real Image
Same model may have multiple batches, images only for reference.

SIT9120AC-1B2-33E100.000000

Part No SIT9120AC-1B2-33E100.000000
Manufacturer SiTIME
Catalog Oscillators
Datasheet
SIT9120AC-1B2-33E100.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT9120
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 69mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1314564-SIT9120AC-1B2-33E100.000000
Ultra Librarian 3D Model Ultra Librarian SIT9120AC-1B2-33E100.000000 CAD Model

Description

The SiTime SiT9120AC-1B2-33E100.000000 is a 100 MHz XO (Standard) oscillator in strip package.

  • Frequency Stability: ±25ppm
  • Output: LVPECL
  • Voltage Supply: 3.3V
  • Mounting: SMD (SMT)
  • Operating Temperature: -20°C to 70°C
  • Series: SiT9120
  • Function: Enable/Disable
  • Package/Case: 6-SMD, no lead
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • ECCN: EAR99
