Same model may have multiple batches, images only for reference.

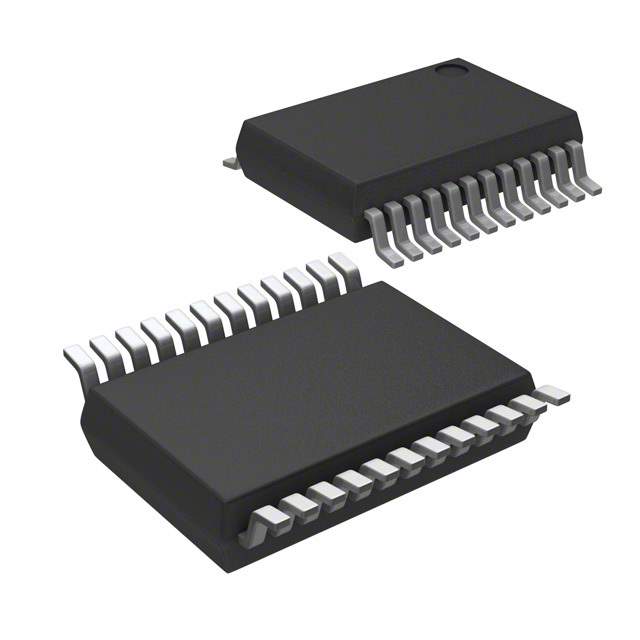

CPT007B-A02-GUR Real Image
Same model may have multiple batches, images only for reference.

CPT007B-A02-GUR

Part No CPT007B-A02-GUR
Manufacturer Silicon Labs
Catalog Capacitive Touch Sensors, Proximity Sensor ICs
Description 7 CHANNEL CAPACITIVE TOUCH CONTR / Capacitive Touch Buttons 24-QSOP
Datasheet
CPT007B-A02-GUR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Sensor, Capacitive Touch
Mfr Silicon Labs
Package Tape & Reel
Product Status Not For New Designs
Type Buttons
Proximity Detection Yes
Number of Inputs Up to 7
LED Driver Channels Up to 7
Interface Open Drain, Push-Pull
Voltage - Supply 1.8V ~ 3.6V
Current - Supply 3.1mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 24-SSOP (0.154", 3.90mm Width)
Supplier Device Package 24-QSOP
Base Product Number CPT007
Standard Package 2,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1346972-CPT007B-A02-GUR
Ultra Librarian 3D Model Ultra Librarian CPT007B-A02-GUR CAD Model

Description

The CPT007B-A02-GUR capacitive touch sensor is ideal for use in buttons.

  • Inputs: Up to 7
  • Proximity Detection: Available
  • Voltage Supply: 1.8V to 3.6V
  • Current Supply: 3.1mA
  • Interface: Open Drain and Push-Pull
  • Package: 24-SSOP package
  • LED Driver Channels: Featured
  • Packaging: Tape and Reel
  • Mounting Type: Surface Mount
