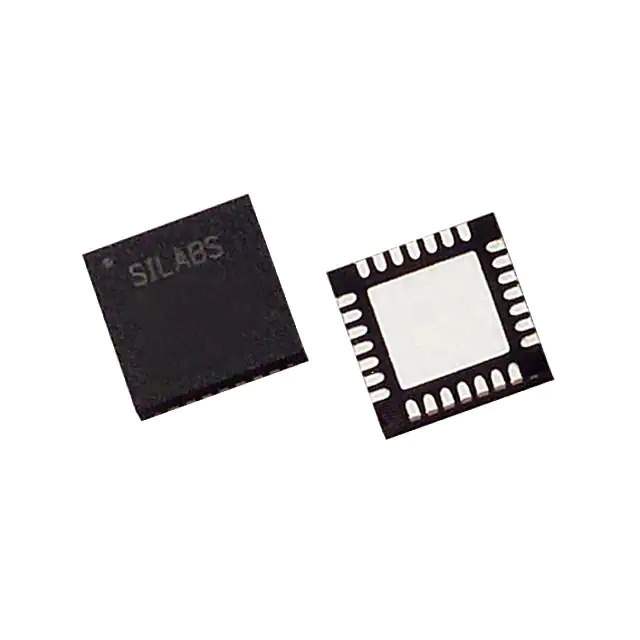

The C8051F411-GM is an 8-bit microcontroller from the C8051F41x series by Silicon Labs.

• Core Processor: 8051 core
• Speed: 50MHz
• Package: Surface mount package with an exposed pad
• I/O Pins: 20
• Connectivity Options: SMBus, SPI, and UART/USART
• Program Memory: 32KB (FLASH)
• RAM Size: 2.25K x 8
• Peripherals: Brown-out Detect/Reset, POR (Power-On Reset), PWM (Pulse Width Modulation), Temp Sensor, and WDT (Watchdog Timer)
• Voltage Range: 2V to 5.25V
• Temperature Range: -40°C to 85°C
• Suitability: Well-suited for applications that require advanced features and performance.
