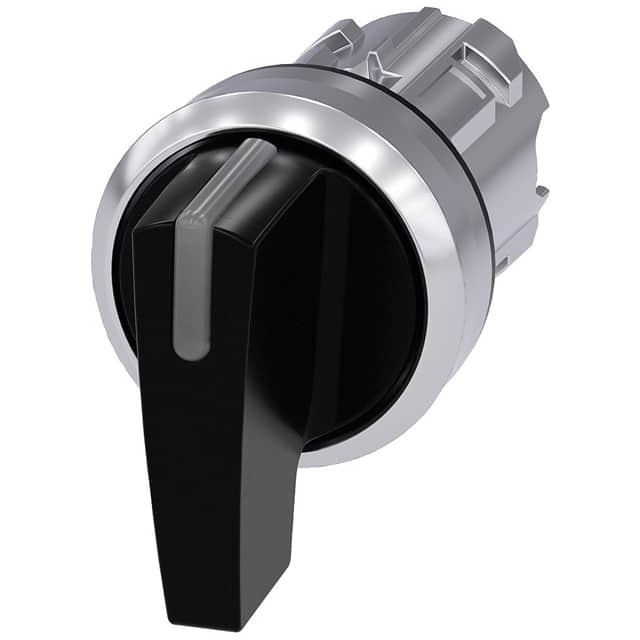

3SU10522CP100AA0 Siemens
Same model may have multiple batches, images only for reference.

3SU10522CP100AA0

Part No 3SU10522CP100AA0
Manufacturer Siemens
Catalog Configurable Switch Components - Body
Description SELECTOR SWITCH. I>O-II. BLACK
Datasheet
3SU10522CP100AA0 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Configurable Switch Components - Body
Mfr Siemens
Series 3SU1
Package Box
Product Status Active
Requires Contact Block(s)
Type Maintained, Momentary
Illumination Non-Illuminated
Actuator Type Selector
(Select First, Then Apply Filters) Compatible Series Siemens, 22mm
Panel Cutout Dimensions 22.3mm (Round)
Base Product Number 3SU1052
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1052945-3SU10522CP100AA0
Ultra Librarian 3D Model Ultra Librarian 3SU10522CP100AA0 CAD Model

Description

The Siemens 3SU1 Configurable Switch Body is a versatile component for configuring switches in industrial applications by Siemens.

  • Switch Type: Maintained and Momentary
  • Actuator Type: Selector
  • Illumination: Non-Illuminated
  • Requirements: Compatible Contact Blocks
  • Panel Cutout Dimension: 22.3mm (round)
  • Compatibility: Siemens 22mm series
