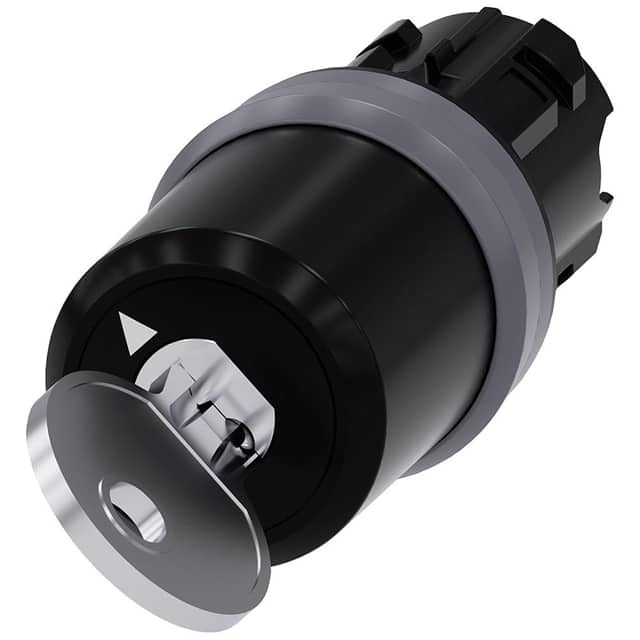

3SU10305HF010AA0 Siemens
Same model may have multiple batches, images only for reference.

3SU10305HF010AA0

Part No 3SU10305HF010AA0
Manufacturer Siemens
Catalog Configurable Switch Components - Body
Description KEY SW, 2POS, MTND, KEY REMOVAL
Datasheet
3SU10305HF010AA0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Configurable Switch Components - Body
Mfr Siemens
Series 3SU1
Package Box
Product Status Active
Requires Contact Block(s)
Type Maintained
Illumination Non-Illuminated
Actuator Type Keylock
(Select First, Then Apply Filters) Compatible Series Siemens, 22mm
Panel Cutout Dimensions 22.3mm (Round)
Base Product Number 3SU1030
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1062509-3SU10305HF010AA0
Ultra Librarian 3D Model Ultra Librarian 3SU10305HF010AA0 CAD Model

Description

The Siemens 3SU1 1062509-3SU10305HF010AA0 is a configurable switch component body designed for use in switches applications from Siemens.

  • Package: box
  • Panel Cutout Dimension: 22.3mm (round)
  • Actuator Type: keylock
  • Illumination: non-illuminated
  • Requirements: contact block(s)
  • Compatibility: Siemens 22mm series
  • Product Status: active
