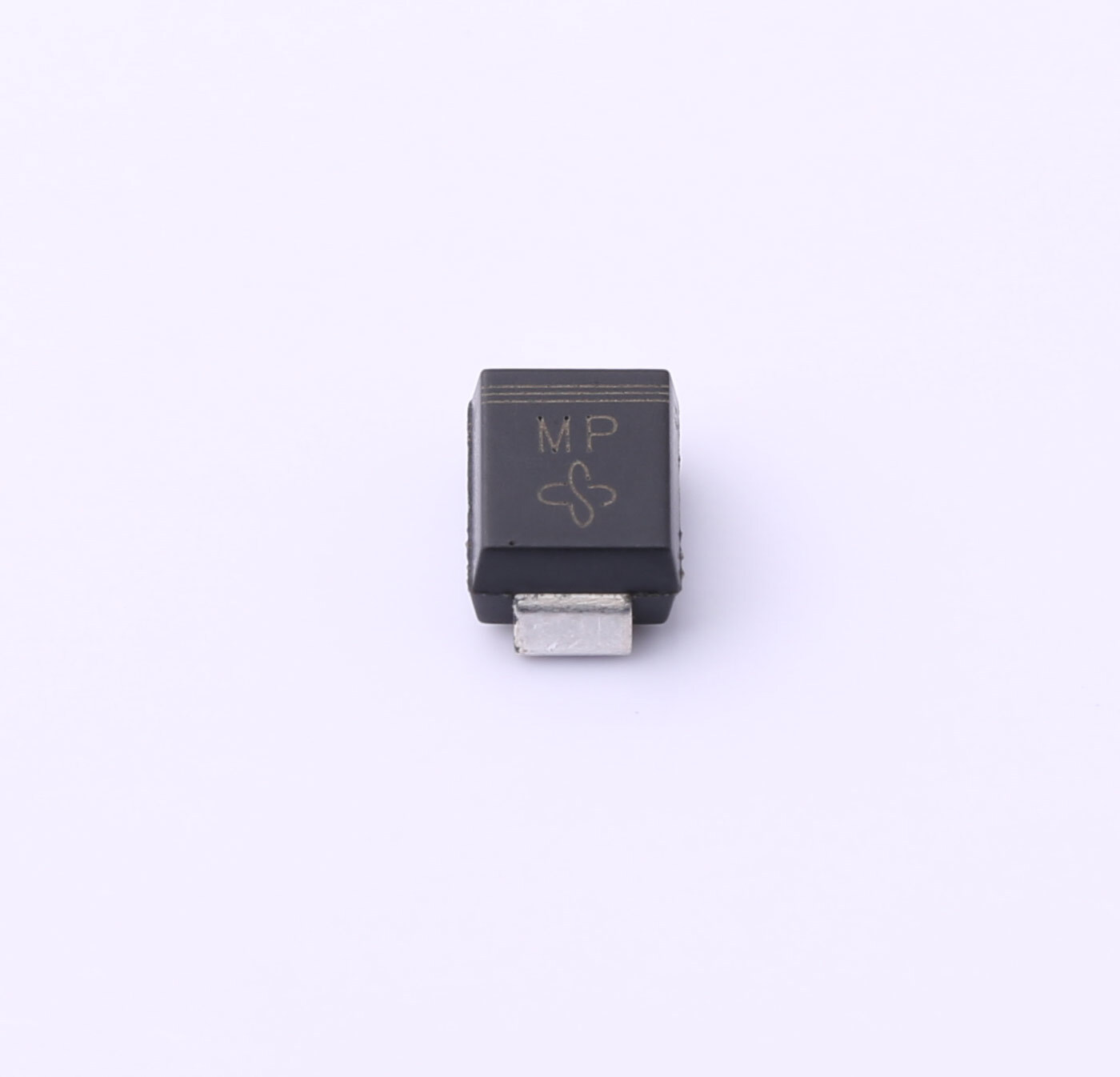

Same model may have multiple batches, images only for reference.
SMBJ36A ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMBJ36A

Part No SMBJ36A
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog TVS - Diodes
Description 40V 10.3A 58.1V 36V 600W SMB
Datasheet
SMBJ36A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329936-SMBJ36A
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V
Voltage - Breakdown (Min) 40V
Voltage - Clamping (Max) @ Ipp 58.1V
Current - Peak Pulse (10/1000µs) 10.4A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature -65°C ~ 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Power Line Protection Yes
Operating Temperature -55°C ~ 150°C
Package Strip
Current - Peak Pulse (10/1000µs) 10.33A
Package / Case DO-214AA (SMB)
Current - Peak Pulse (10/1000µs) 10.3A
Operating Temperature -55°C ~ 150°C (TJ)
Supplier Device Package DO-214AA (SMB)
Package Cut Tape (CT)
Package / Case DO-214AC, SMA
Supplier Device Package SMA
Ultra Librarian 3D Model Ultra Librarian SMBJ36A CAD Model
