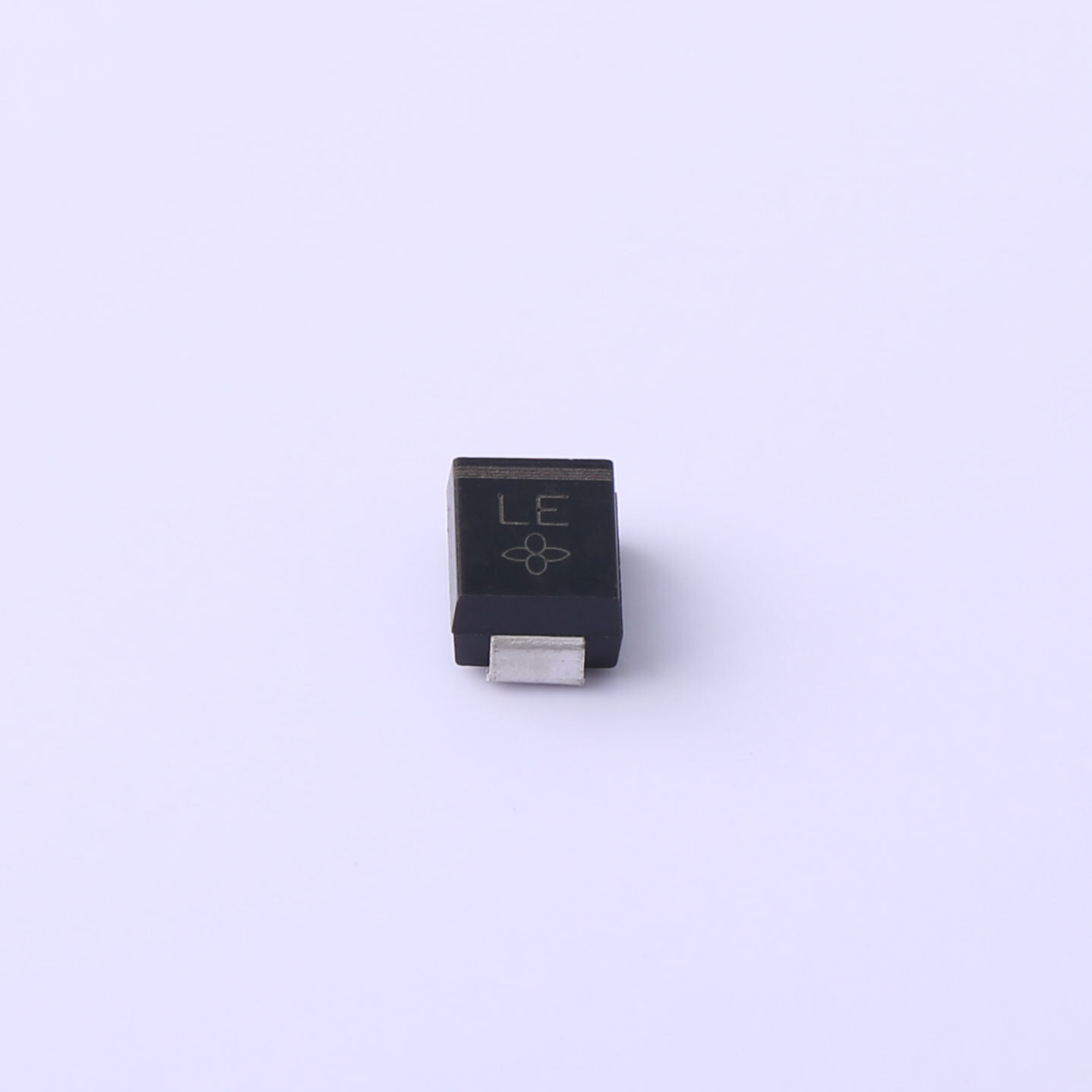

Same model may have multiple batches, images only for reference.
SMBJ12A ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMBJ12A

Part No SMBJ12A
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog TVS - Diodes
Description 30.2A 19.9V 13.3V 12V DO-214AA
Datasheet
SMBJ12A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329915-SMBJ12A
Series *
Package Tape & Reel (TR)
Product Status Active
Grade -
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 19.9V
Current - Peak Pulse (10/1000µs) 30.2A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Package Bulk
Current - Peak Pulse (10/1000µs) 30.15A
Operating Temperature -55°C ~ 150°C (TJ)
Supplier Device Package SMB
Package Strip
Operating Temperature -55°C ~ 150°C
Package / Case DO-214AA (SMB)
Package Tape & Reel (TR);Cut Tape (CT)
Ultra Librarian 3D Model Ultra Librarian SMBJ12A CAD Model
