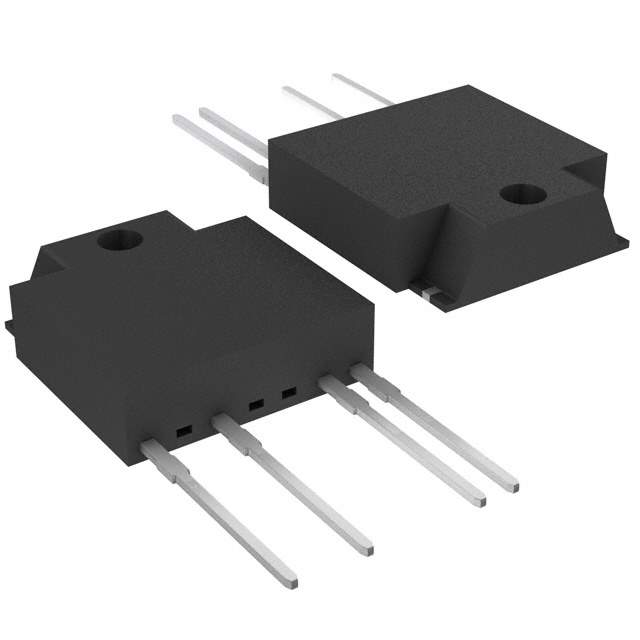

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Sharp Microelectronics
Series S101
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 1.2VDC
Voltage - Load 80 V ~ 120 V
Load Current 3 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Other Names 425-1213-5
Standard Package 50
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1237268-S101S16V
Ultra Librarian 3D Model Ultra Librarian S101S16V CAD Model

Description

The Sharp Microelectronics S101 series solid-state relay (SSR) is part number 1237268-S101S16V.

  • Termination Style: PC pin
  • Package: Tube
  • Circuit: SPST-NO
  • Input Voltage: 1.2VDC
  • Output Type: AC, zero cross
  • Load Current: 3A
  • Voltage Load: 80V to 120V
  • Package/Case: 4-SIP
  • Supplier Device Package: 4-SIP
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.41.0030
  • Series Status: Obsolete
  • RoHS: Non-compliant
