Same model may have multiple batches, images only for reference.

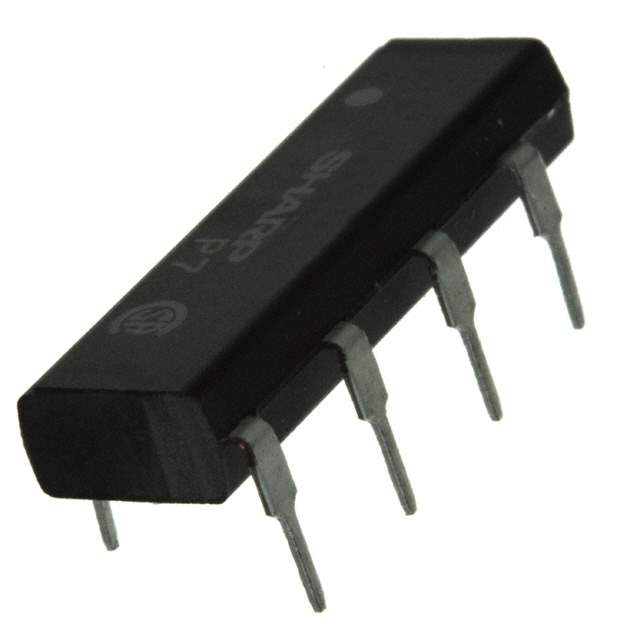

S101D01 Real Image
Same model may have multiple batches, images only for reference.

S101D01

Part No S101D01
Manufacturer Sharp Microelectronics
Catalog Solid State Relays
Description RELAY SSR 120VAC 1.2A TRIA 16DIP
Datasheet
S101D01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST-NO (1 Form A)
Output Type AC
Load Current 1.2A
Voltage - Input 1.2VDC
Voltage - Load 0 to 120 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 16-DIP
Relay Type Relay
Win Source Part Number 062810-S101D01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S101D01 CAD Model

Description

The Sharp Microelectronics relay is a through-hole mounted relay with a PC pin termination style.

  • Voltage Input: 1.2VDC
  • Output Type: AC
  • Circuit: SPST-NO (1 Form A)
  • Relay Type: Relay
  • Load Current: 1.2A
  • Voltage Load: 0 to 120 V
  • Case/Package: 16-DIP
