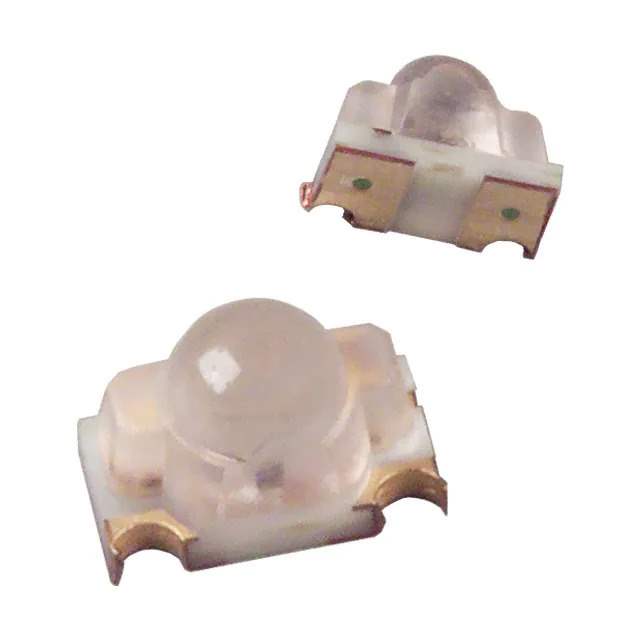

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Phototransistors
Mfr Sharp Microelectronics
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 35 V
Current - Collector (Ic) (Max) 20 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 900nm
Viewing Angle 30°
Power - Max 75 mW
Mounting Type Surface Mount
Orientation Universal
Temperature Range - Operating -30°C ~ 85°C (TA)
Package / Case 2-SMD, No Lead
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 657581-PT100MC0MP
Ultra Librarian 3D Model Ultra Librarian PT100MC0MP CAD Model

Description

The Sharp Microelectronics PT100MC0MP is an obsolete optical sensor phototransistor.

  • Category: sensors and transducers, specifically optical sensors
  • Package Type: tape & reel (TR) cut tape (CT)
  • Standard Package: includes 2,000 pieces
  • Maximum Power: 75 mW
  • Voltage Breakdown: 35 V
  • Maximum Collector Current (Ic): 20 mA
  • Viewing Angle: 30 degrees
  • Wavelength: 900nm
  • Mounting Type: surface mount
  • Package/Case: 2-SMD, no lead
  • Operating Temperature Range: from -30 degrees Celsius to 85 degrees Celsius
  • ECCN: EAR99
