Same model may have multiple batches, images only for reference.

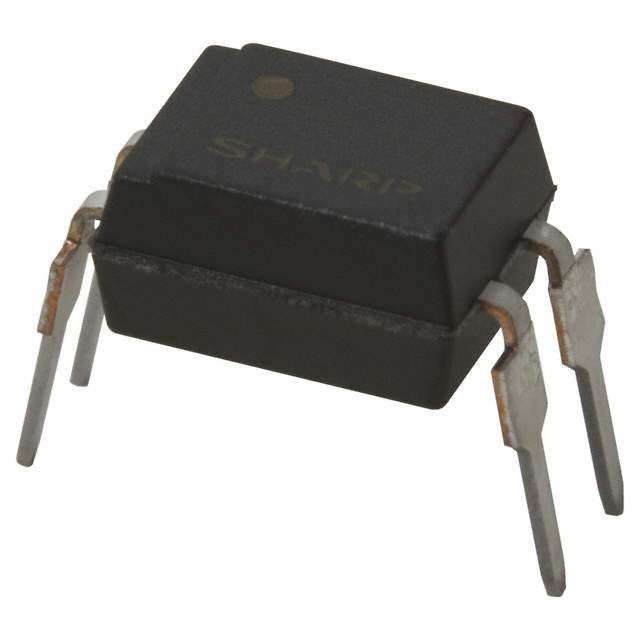

PC851XNNSZ1H Real Image
Same model may have multiple batches, images only for reference.

PC851XNNSZ1H

Part No PC851XNNSZ1H
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS DIP / Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Datasheet
PC851XNNSZ1H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Manufacturer SHARP/Socle Technology
Packaging Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 40% @ 5mA
Rise / Fall Time (Typ) 4µs, 5µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 350V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -25°C ~ 100°C
Mounting Through Hole
Case / Package 4-DIP (0.300", 7.62mm)
Supplier Device Package 4-DIP
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 5,000
Win Source Part Number 1331856-PC851XNNSZ1H
Ultra Librarian 3D Model Ultra Librarian PC851XNNSZ1H CAD Model

Description

The SHARP/Socle Technology PC851XNNSZ1H is an optoisolator transistor designed by SHARP/Socle Technology.

  • Package: 4-DIP (0.300", 7.62mm)
  • Standard Package: 5,000
  • Mounting: Through-hole
  • ECCN: EAR99
