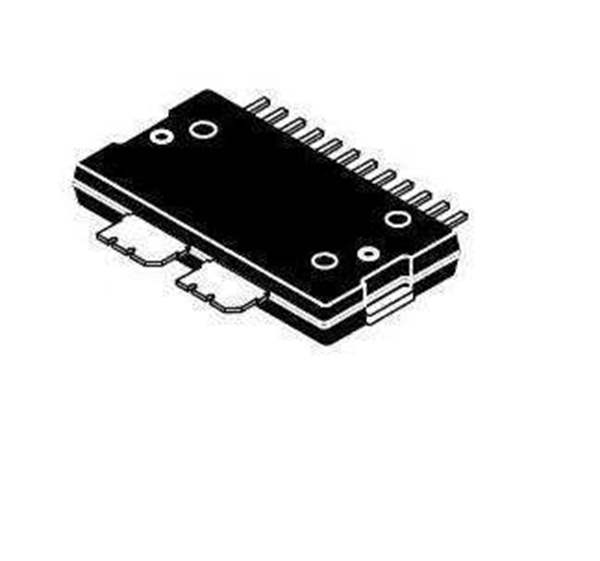

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer NXP USA Inc.
Category RF and Wireless > RF Amplifiers
Frequency 902MHz ~ 928MHz
P1dB 55.2dBm
Gain 33.8dB
RF Type General Purpose
Voltage - Supply 50V
Test Frequency 902MHz ~ 928MHz
Mounting Type Surface Mount
Package / Case TO-270-14 Variant, Flat Leads
Ultra Librarian 3D Model Ultra Librarian MHT2001NR1 CAD Model

Description

Features

• Characterized with series equivalent large--signal impedance parameters and common source S--parameters

• Internally input matched

• Qualified for operation at 50 Vdc

• On--chip input and interstage matching (50 ohm input)

• Integrated quiescent current temperature compensation(1)

• Integrated ESD protection

• 150°C case operating temperature

• 225°C die temperature capability

• Integrated power and temperature sensors
